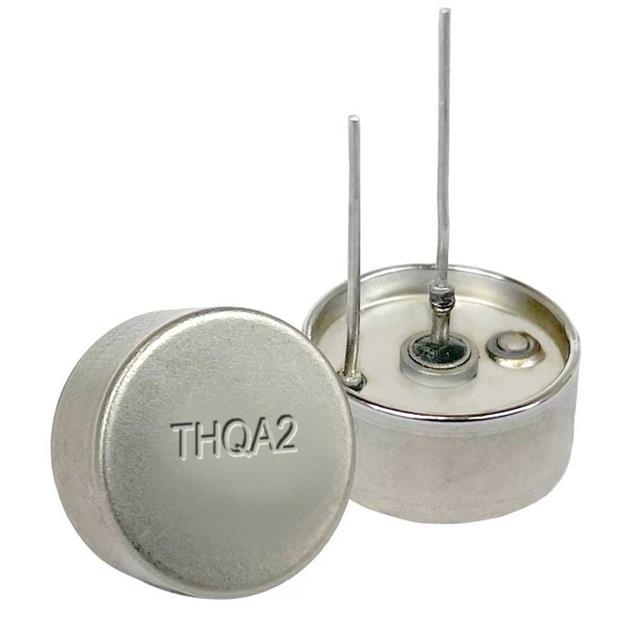

THQA2075561
ActiveQuantic Evans
WET TANTALUM
THQA2075561
ActiveQuantic Evans
WET TANTALUM
Description
General part information
THQA2075561
565 µF Hermetically Sealed Tantalum Capacitors 75 V Radial, Can 500mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | THQA2075561 |
|---|---|
| Capacitance | 565 µF |
| ESR (Equivalent Series Resistance) | 500 mOhm |
| Features | Hybrid Wet Tantalum |
| Height - Seated (Max) | 0.605 in |
| Lead Spacing | 0.2 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.6 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 75 V |
