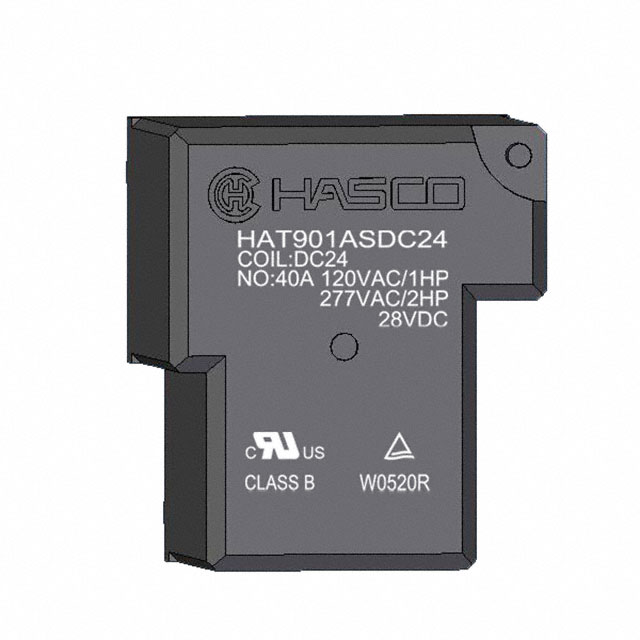

HAT901ASDC24

Active

Hasco Relays

RELAY SPST 30A 24V

Search across all available documentation for this part.

Active

Hasco Relays

RELAY SPST 30A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	20	$ 1.59

General part information

Relay SPST-NO (1 Form A) 24VDC Coil Through Hole

Technical documentation and resources

Part	Contact Rating (Current)	Must Release Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Operate Voltage	Operate Time	Release Time	Contact Material	Coil Voltage	Switching Voltage [Max]	Coil Current	Termination Style	Coil Insulation	Coil Type
Hasco Relays HAT901CSDC24	40 A	2.4 VDC	SPDT (1 Form C)	85 °C	-40 °C	Through Hole	18 VDC	15 ms	10 ms	Silver Alloy	24 VDC	277 VAC	36.4 mA	PC Pin	Class B	Non Latching
Hasco Relays HAT901ASDC24	30 A	2.4 VDC	SPST-NO (1 Form A)	85 °C	-40 °C	Through Hole	18 VDC	15 ms	10 ms	Silver Alloy	24 VDC	277 VAC	36.4 mA	PC Pin	Class B	Non Latching
