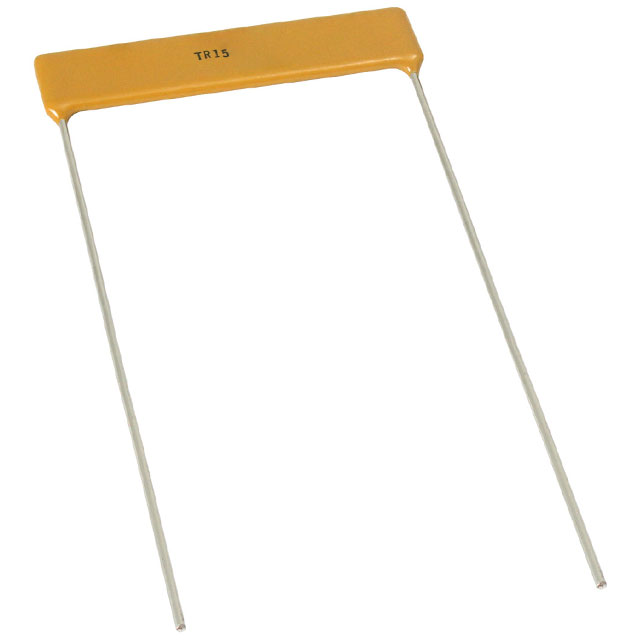

TR15G100MFNES
ActiveVishay Dale
RES 100M OHM 1% 1.5W RADIAL
TR15G100MFNES
ActiveVishay Dale
RES 100M OHM 1% 1.5W RADIAL
Description
General part information
TR15G100MFNES
100 MOhms ±1% 1.5W Through Hole Resistor Radial High Voltage Thick Film
Technical Specifications
Parameters and characteristics for this part
| Specification | TR15G100MFNES |
|---|---|
| Composition | Thick Film |
| Features | High Voltage |
| Height - Seated (Max) | 0.385 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Package Name | Radial |
| Power (Watts) | 1.5 W |
| Resistance | 100 MOhm |
| Size / Dimension Length | 1.5 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
