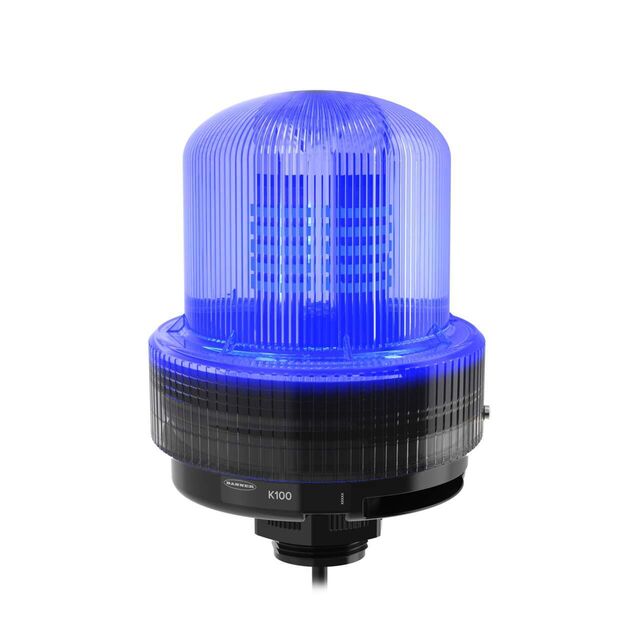

K100PBLNBYRA
ActiveBANNER ENGINEERING
BEACON, MULTIFUNCTION, BLUE/RED/YELLOW, 101 DB, 48 VDC, CABLE, IP66/IP69K, K100 PRO SERIES
K100PBLNBYRA
ActiveBANNER ENGINEERING
BEACON, MULTIFUNCTION, BLUE/RED/YELLOW, 101 DB, 48 VDC, CABLE, IP66/IP69K, K100 PRO SERIES
Description
General part information
K100PBLNBYRA
Stack Light Complete Unit Blue, Red, Yellow LED Alarm Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | K100PBLNBYRA |
|---|---|
| Features | Alarm |
| Function - Lighting | Steady |
| Ingress Protection Description | Dust Tight, Waterproof; NEMA 4X, Water Resistant |
| Ingress Protection IP Rating | IP69K, IP66 |
| Lamp Type | LED |
| Light Color | Yellow, Red, Blue |
| Number of Stacks | 3 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Wire Leads |
| Type | Complete Unit |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
