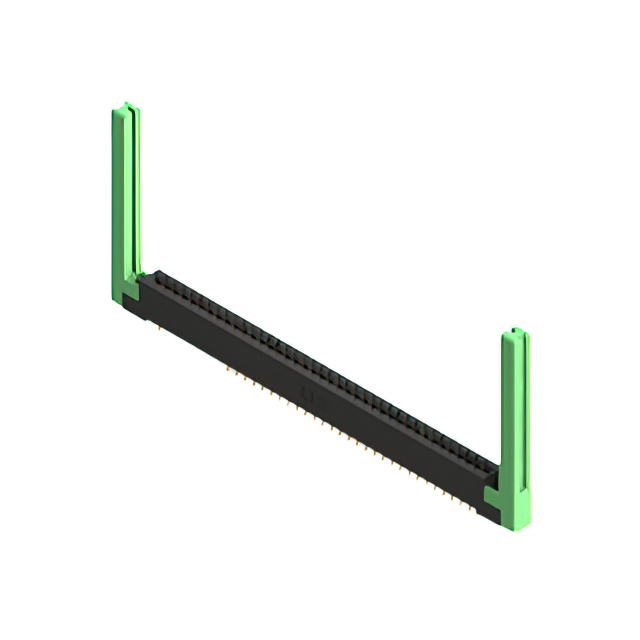

387-076-556-258
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-076-556-258
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 76POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-076-556-258 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-076 Series
...
| Part | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Gender | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Read Out | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Number of Positions/Bay/Row [custom] | Contact Type | Features | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 38 | Cantilever | Card Extender | Solder Eyelet(s) | Gold |
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 38 | Cantilever | Card Extender | Solder | Gold |
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole Right Angle | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 38 | Cantilever | Wire Wrap | Gold | |||
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 38 | Cantilever | Wire Wrap | Gold | |||
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Non Specified - Dual Edge | 38 | Cantilever | Solder | Gold | |
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 38 | Cantilever | Solder | Gold | |||
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 38 | Cantilever | Solder Eyelet(s) | Gold | |||
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole Right Angle | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 38 | Cantilever | Wire Wrap | Gold | |||
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Board Edge Straddle Mount | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 38 | Cantilever | Solder | Gold | |||
EDAC Inc. | Black | 10 Áin | 0.25 Ám | Polyester Thermoplastic | 2 | -40 °C | 105 ░C | Copper Alloy | Through Hole | Female | 76 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Dual | 0.156 in | 3.96 mm | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | 38 | Cantilever | Solder | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
