HSB16-404018
ActiveSame Sky (Formerly CUI Devices)

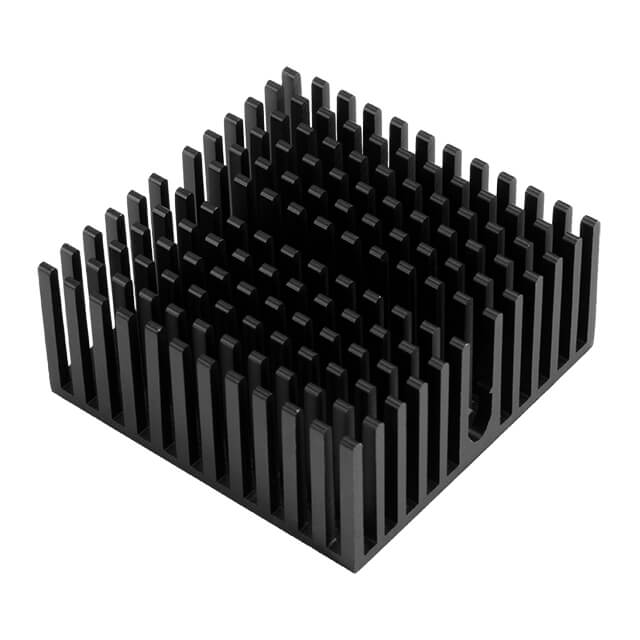

HEATSINK: EXTRUDED; GRILLED; BLACK; L: 40MM; W: 40MM; H: 18MM
HSB16-404018
ActiveSame Sky (Formerly CUI Devices)
HEATSINK: EXTRUDED; GRILLED; BLACK; L: 40MM; W: 40MM; H: 18MM
Description
General part information
HSB16-404018
Heat Sink BGA Aluminum Alloy 9.4W @ 75°C Top Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HSB16-404018 |
|---|---|
| Attachment Method | Adhesive (Not Included) |
| Fin Height | 0.709 in |
| Length | 1.575 in |
| Material | Aluminum Alloy |
| Material Finish | Black Anodized |
| Package Cooled | BGA |
| Power Dissipation | 9.4 W |
| Shape | Square, Pin Fins |
| Thermal Resistance | 7.96 °C/W, 2.6 °C/W |
| Type | Top Mount |
| Width | 1.575 in |
