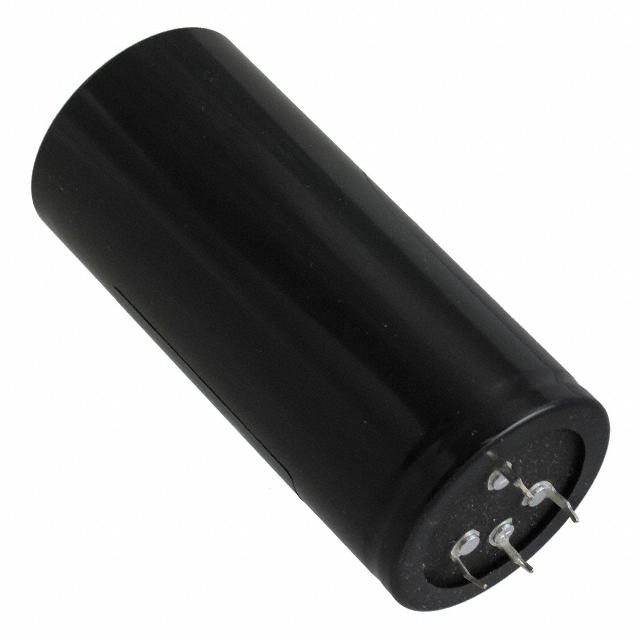

B43510A6158M007
ActiveEPCOS - TDK Electronics
CAP ALUM 1500UF 20% 500V SNAP TH
B43510A6158M007
ActiveEPCOS - TDK Electronics
CAP ALUM 1500UF 20% 500V SNAP TH
Description
General part information
B43510A6158M007
1500 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 80mOhm @ 100Hz 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B43510A6158M007 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 µF |
| ESR (Equivalent Series Resistance) | 80 mOhm |
| Height - Seated (Max) | 4.016 in |
| Impedance | 110 mOhm |
| Lead Spacing | 0.984 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 4 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 4.67 A |
| Size / Dimension Diameter | 1.772 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
