N60430500000G
ActiveMcGill Microwave Systems

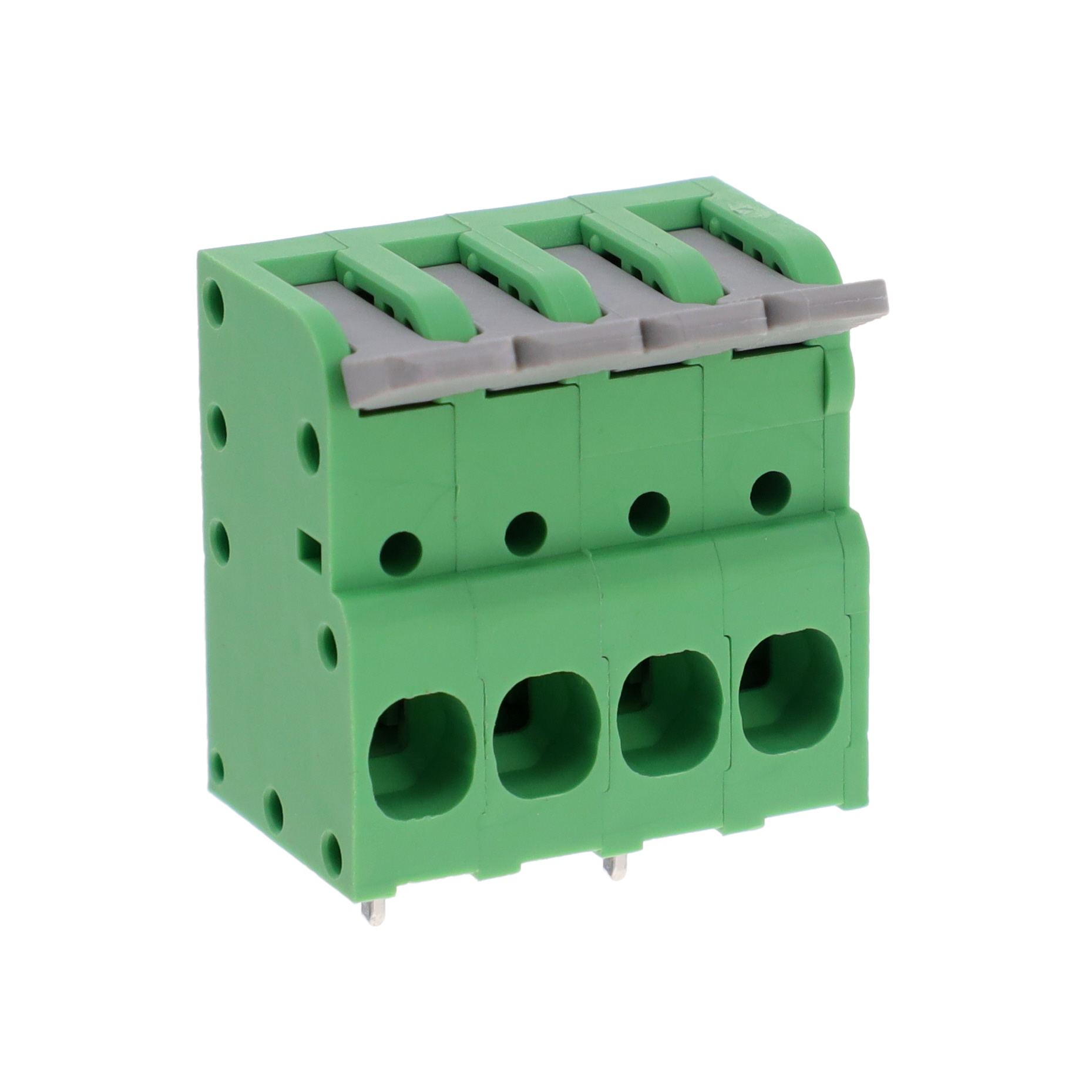

N6 6.35 4P GREEN BODY WITH GREY
N60430500000G
ActiveMcGill Microwave Systems
N6 6.35 4P GREEN BODY WITH GREY
Description
General part information
N60430500000G
4 Position Wire to Board Terminal Block Horizontal with Board 0.250" (6.35mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | N60430500000G |
|---|---|
| Clamp Material - Plating | Steel, Stainless |
| Color | Green |
| Contact Material | Copper |
| Current | 30 A |
| Features | Lever Actuated |
| Housing Material | Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.25 in |
| Plating | Tin Plated |
| Positions Per Level | 4 |
| Voltage | 600 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
