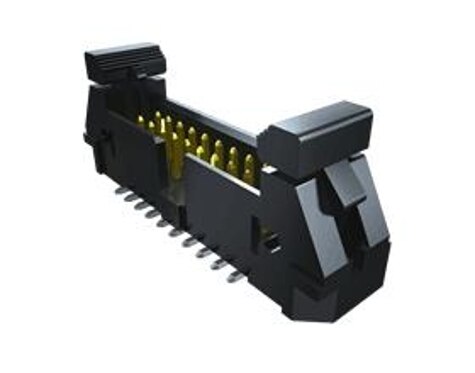

Specification	EJH-110-01-L-D-TH-01

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Length - Mating	0.225 in
Contact Length - Post	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Eject Hooks, Latch Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.5 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	19
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

EJH Series

Headers & Wire Housings .100" Shrouded IDC Ejector Header

...

Part	Features	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Color	Contact Type	Shrouding	Number of Rows	Row Spacing - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Contact Length - Mating	Mounting Type	Contact Shape	Insulation Material	Insulation Height	Pitch - Mating	Connector Type	Current Rating	Contact Finish - Post	Contact Finish - Mating	Contact Material	Termination	Number of Positions	Style	Contact Length - Post	Number of Positions Loaded
Samtec Inc. EJH-120-01-FM-D-SM-LC	Board Lock Keying Slot	3 µin	All	Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire
Samtec Inc. EJH-120-02-F-D-TH	Keying Slot	3 µin	All	Natural	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire	0.12 in
Samtec Inc. EJH-120-01-S-D-SM-LC	Board Lock Keying Slot		All	Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire
Samtec Inc. EJH-120-02-F-D-SM-K	Keying Slot Pick and Place	3 µin	All	Natural	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire
Samtec Inc. EJH-120-01-S-D-SM-01-K-TR	Keying Slot Pick and Place			Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire		39
Samtec Inc. EJH-120-01-SM-D-SM-LC	Board Lock Keying Slot		All	Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire
Samtec Inc. EJH-120-01-SM-D-TH	Keying Slot		All	Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Through Hole	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire	0.12 in
Samtec Inc. EJH-120-02-F-D-SM	Keying Slot	3 µin	All	Natural	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire
Samtec Inc. EJH-120-01-F-D-RA-40	Keying Slot	3 µin		Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Right Angle Through Hole	Square	Liquid Crystal Polymer (LCP)	0.39 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire	0.09 in	39
Samtec Inc. EJH-120-01-F-D-SM-LC-08	Board Lock Keying Slot	3 µin		Black	Male Pin	Shrouded - 4 Wall	2	0.1 in	125 °C	-55 °C	Eject Hooks Latch Lock	0.225 in	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.5 in	0.1 in	Header	3 A	Tin	Gold	Phosphor Bronze	Solder	40	Board Cable/Wire		39
