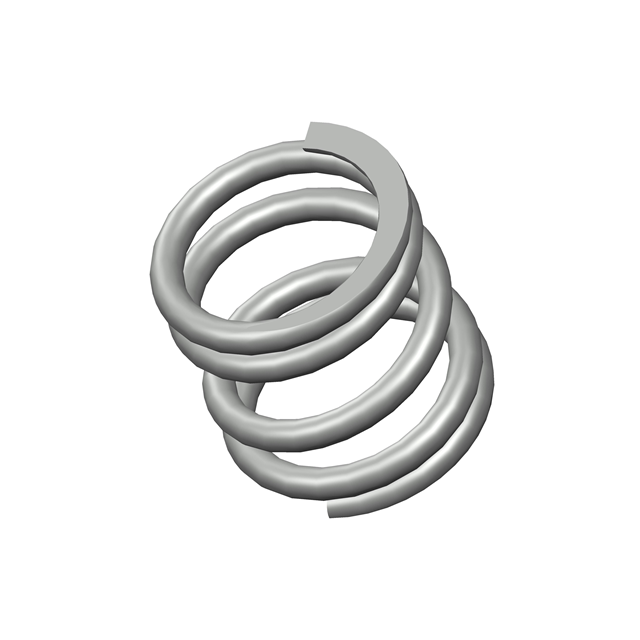

A-32CS
ActiveCentury Spring Corp
COMP O= .375,L= .38,W= .045
A-32CS
ActiveCentury Spring Corp
COMP O= .375,L= .38,W= .045
Description
General part information
A-32CS
COMP O= .375,L= .38,W= .045
Technical Specifications
Parameters and characteristics for this part
| Specification | A-32CS |
|---|---|
| Diameter - Inside | 0.285 in |
| Diameter - Outside | 0.375 in |
| End Style | Ground, Closed |
| Finish | None |
| Free Length | 0.38 in |
| Material | Spring Steel |
| Rate (lbs/in) | 66 lbs/in |
| Type | Compression |
| Wire Diameter | 0.045 in |
