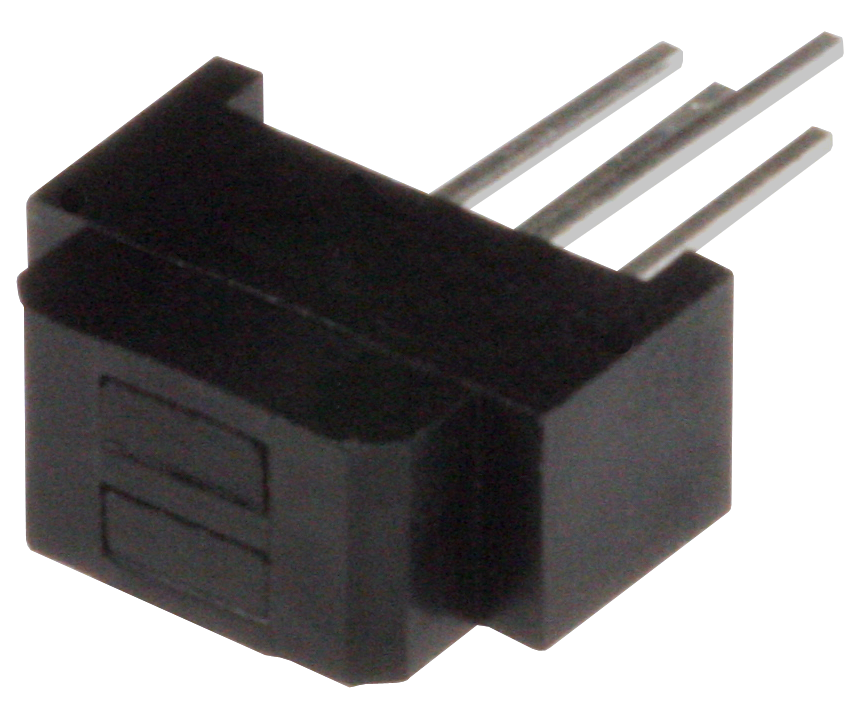

OPB712
ActiveTT Electronics/BI
SENSR OPTO TRANS 2.03MM REFL PCB
OPB712
ActiveTT Electronics/BI
SENSR OPTO TRANS 2.03MM REFL PCB
Description
General part information
OPB712
SENSR OPTO TRANS 2.03MM REFL PCB
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB712 |
|---|---|
| Current - Collector (Ic) (Max) | 0.125 mA |
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Output Type | Photodarlington |
| Package / Case | PCB Mount |
| Sensing Distance | 0.08 " |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
App Note 248: Connecting and Using Infrared Optoelectronics
Optoelectronics for Medical Tri-Fold
REACH Compliance for Juarez Site
App Note 249: Slotted and Reflective Switches
Conflict Minerals Policy for Juarez Site
Sensors Product Selection Guide
Declaration of Mineral Conflict Free Material for Juarez Site
Juarez ISO 9001
Quality Manual for Juarez Site
Optoelectronics One Pager
Custom Optoelectronic Assemblies Tri-Fold
RoHs Letter for Juarez Site
RoHs 3 Declaration Form for Juarez Site
Supplier Quality Requirements Manual
App Note 247: Reflective Assemblies
App Note: Optoelectronic Sensors for Electric Power Metering
OPB711 712
Lead Free and RoHs Compliance for Juarez Site
App Note 204: Reflective Assemblies - Design Considerations for Single-Sided Sensing Applications
