ANT-868-WRT-UFL-300
ActiveTE Connectivity AMP Connectors

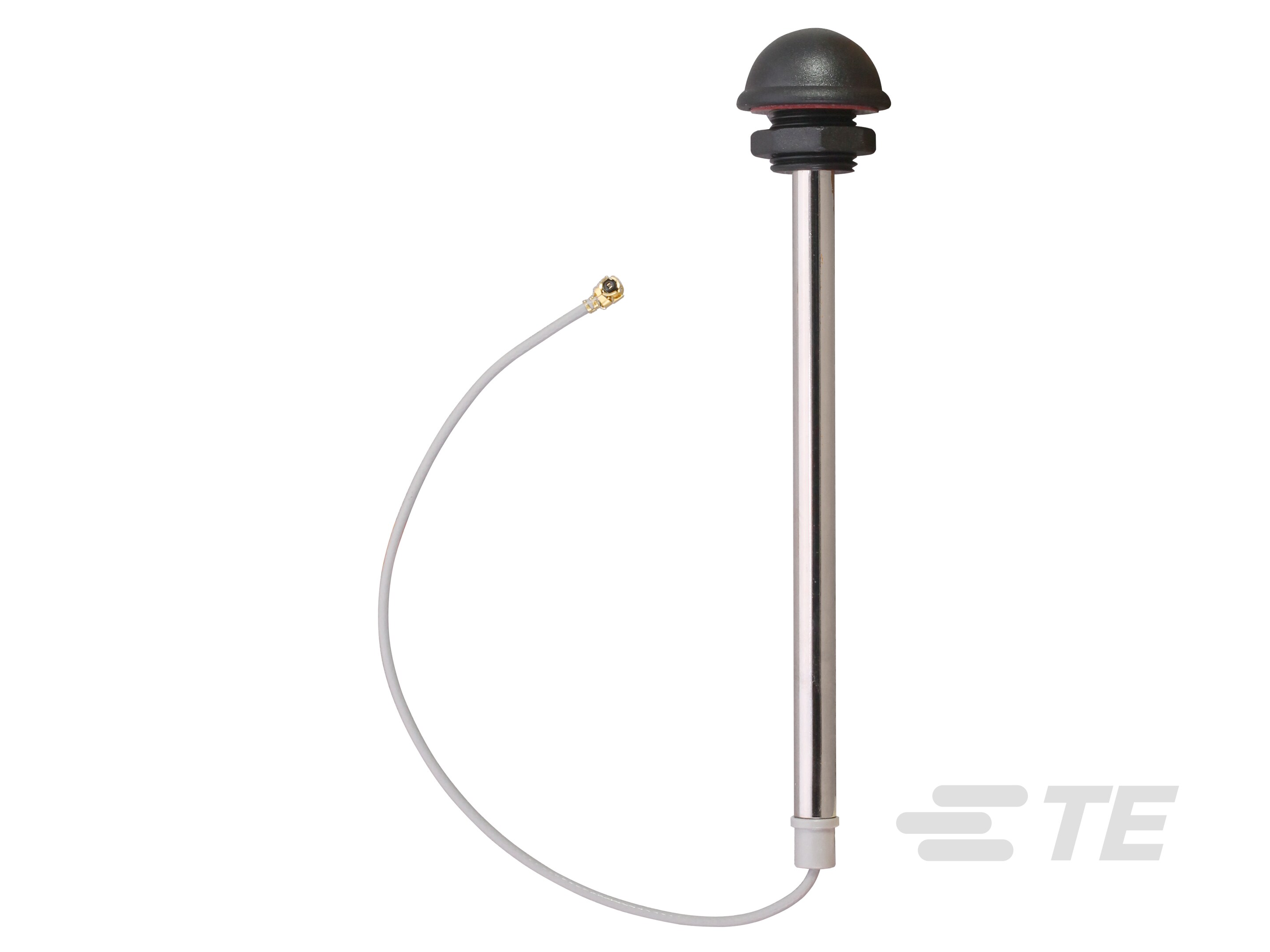

ANTENNA DOME 868MHZ 1.32 300 UFL
ANT-868-WRT-UFL-300
ActiveTE Connectivity AMP Connectors
ANTENNA DOME 868MHZ 1.32 300 UFL
Description
General part information
ANT-868-WRT-UFL-300
Dome/Puck Antenna, Single Band, LPWAN / LoRaWAN, External Mount, Stud/Screw/Lug Mount, MHF1 / U.FL / UMCC, Omnidirectional, Single Port
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-868-WRT-UFL-300 |
|---|---|
| Antenna Type | Dome |
| Applications | LoRaWAN, ISM, LPWA, Sigfox |
| Features | Cable, 300mm |
| Frequency (Center/Band) | 868 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 876 MHz |
| Frequency Range (Min) | 862 MHz |
| Gain | 3.8 dBi |
| Height (Max) | 0.394 in |
| Mounting Type | Panel Mount |
| Number of Bands | 1 |
| Power - Max | 5 VA |
| RF Family/Standard | General ISM |
| Termination Type | SMA Male |
| VSWR | 1.4 |
