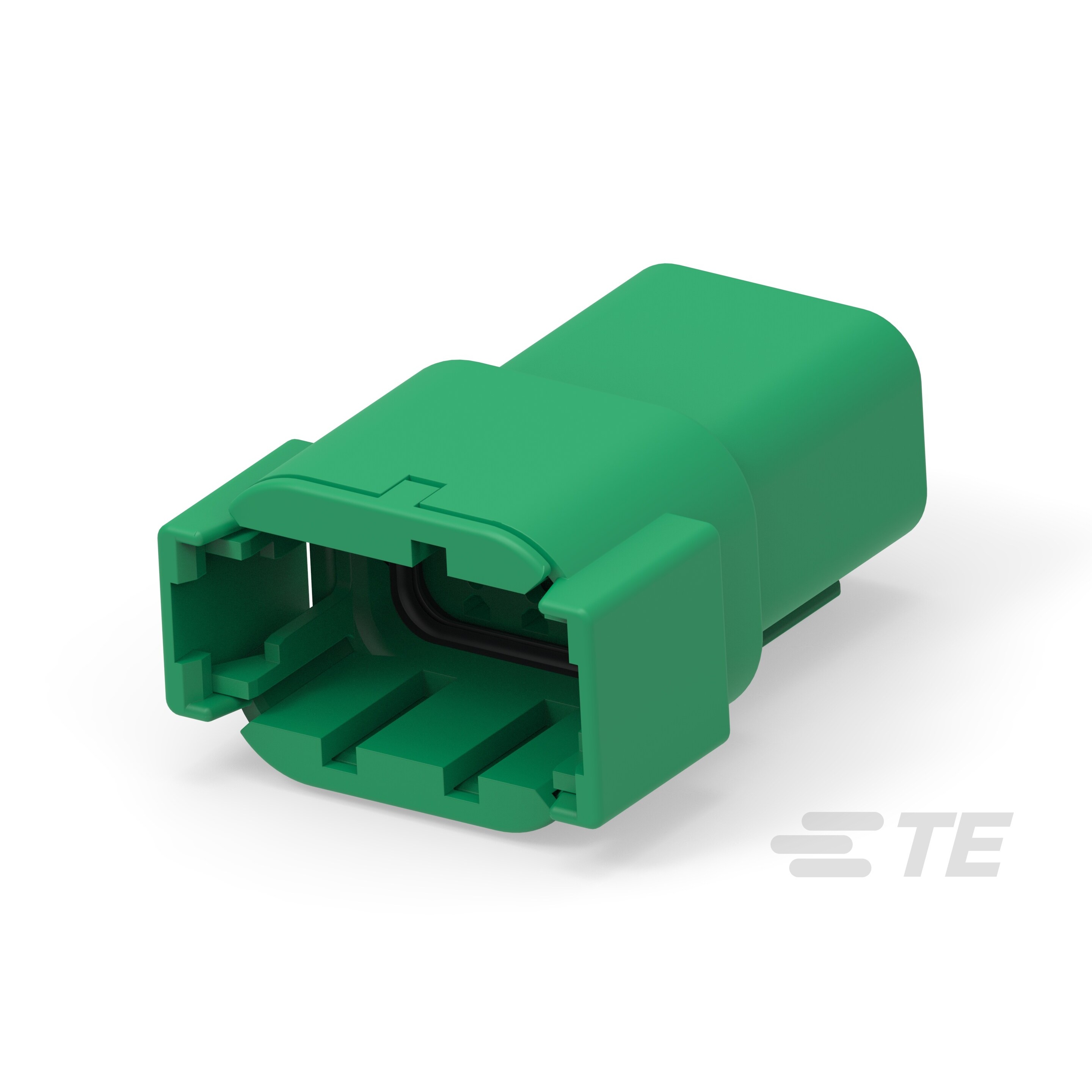

DTM04-08PC
ActiveTE Connectivity AMP Connectors
REC, 8P, GRN, N, C
DTM04-08PC
ActiveTE Connectivity AMP Connectors
REC, 8P, GRN, N, C
Description
General part information
DTM04-08PC
8 Position Housing, Housing for Male Terminals, Wire-to-Wire, 4.19 mm [.165 in] Centerline, Sealable, Green, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | DTM04-08PC |
|---|---|
| Color | Green |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.165 in |
| Row Spacing | 0.28 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
