Description
General part information
XS512B1DAL2

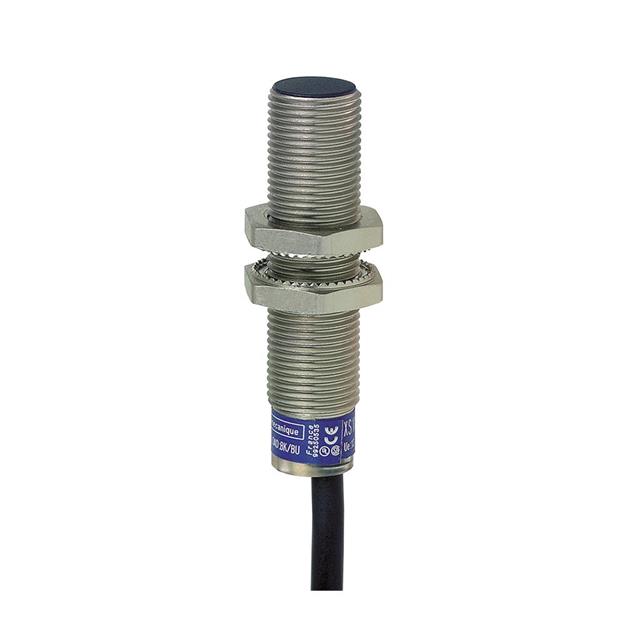

Inductive Proximity Sensor 0.079" (2mm) IP68, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS512B1DAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | NO, 2-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
