HOA0961-T51
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR OPTICAL 3.18MM PCB MOUNT
HOA0961-T51
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR OPTICAL 3.18MM PCB MOUNT
Description
General part information
HOA0961-T51

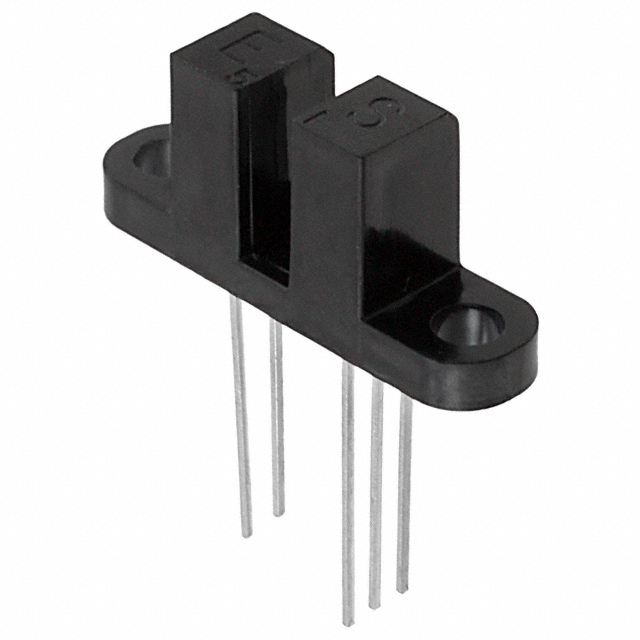

Optical Sensor Through-Beam 0.125" (3.18mm) PCB Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HOA0961-T51 |
|---|---|
| Current - Supply | 12 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Buffer, NPN - Open Collector |
| Package / Case | PCB Mount |
| Response Time | 60 ns, 15 ns |
| Sensing Distance | 0.125 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 10 V |
| Voltage - Supply (Minimum) | 4.5 V |
