1-2834014-8
ActiveTE Connectivity AMP Connectors
8POS 5.0MM DES CONN.
1-2834014-8
ActiveTE Connectivity AMP Connectors
8POS 5.0MM DES CONN.
Description
General part information
1-2834014-8

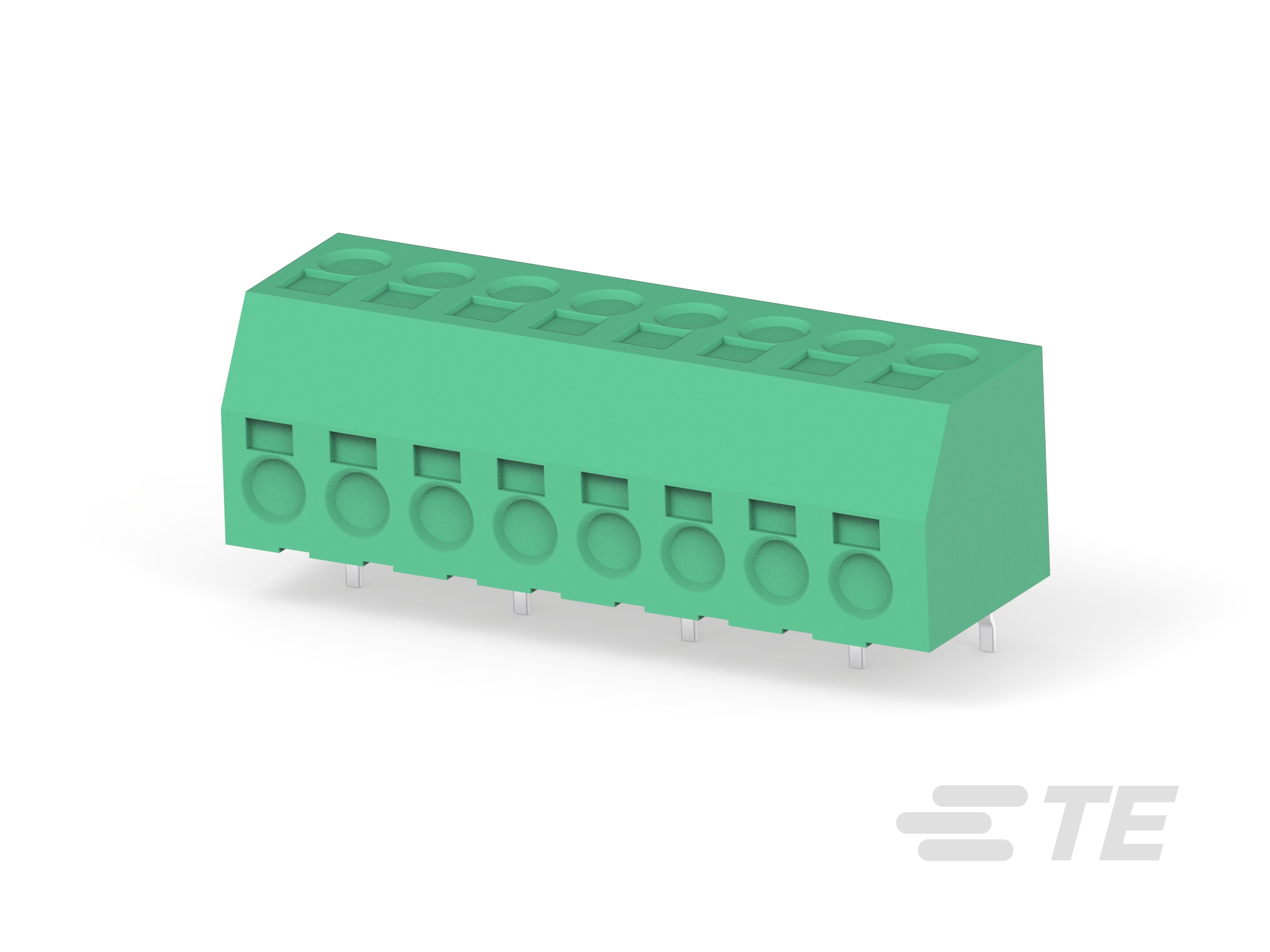

8 Position PCB Terminal Block, Receptacle, Wire-to-Board, 5 mm [.196 in] Centerline, 1 Row, 180° / 90° Wire Entry Angle, 20 – 16 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2834014-8 |
|---|---|
| Color | Green |
| Current | 10 A |
| Mating Orientation | Angled |
| Mounting Type | Kinked Pin, Through Hole |
| Number of Levels | 1 |
| Pitch | 0.197 in |
| Positions Per Level | 8 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
