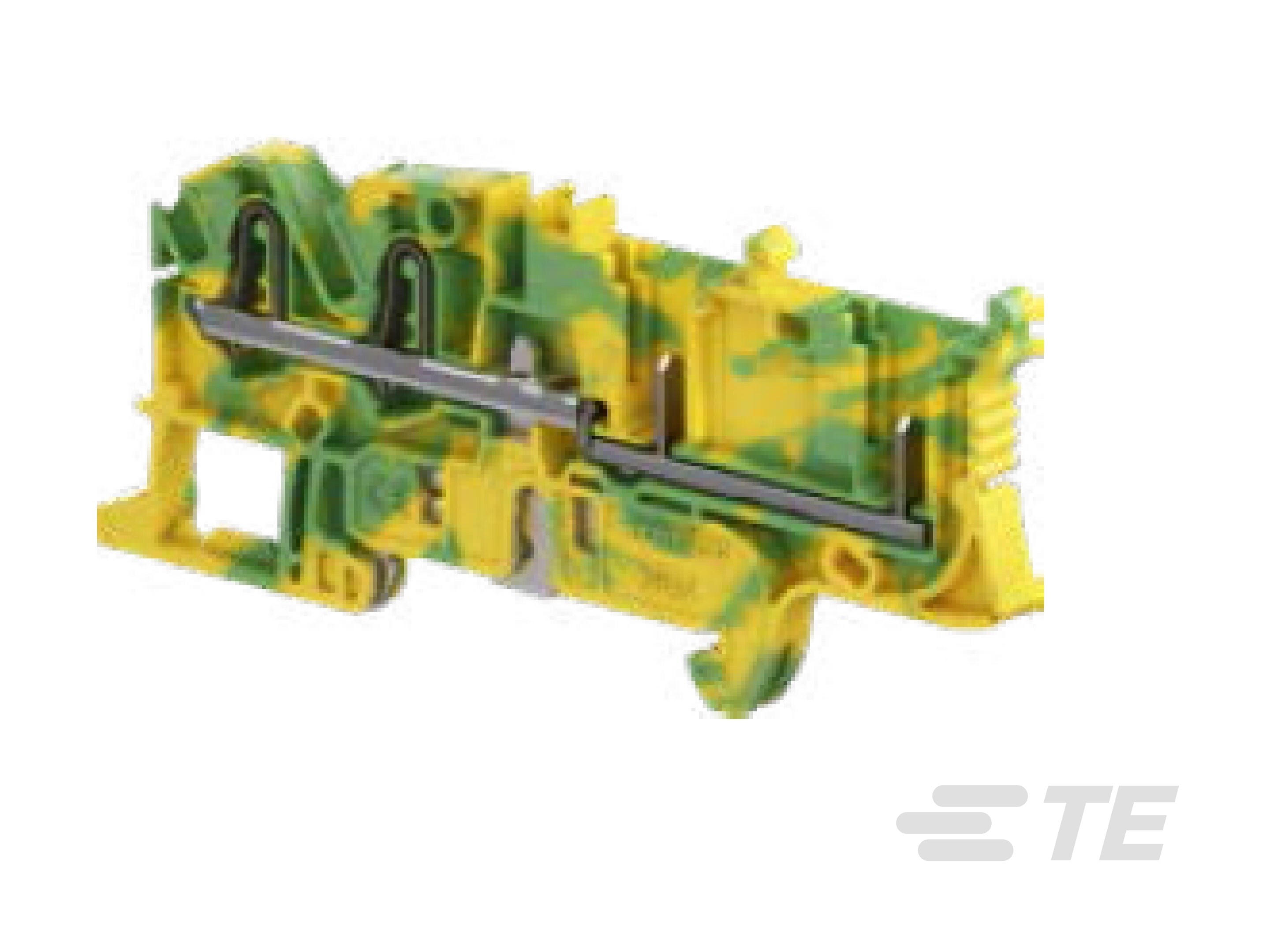

Specification	1SNK805152R0000

Height (Max)	1.98 in
Housing Color	Green, Yellow
Length	3.7 in
Mounting Type	DIN Rail
Number of Levels	1
Number of Positions	4
Stripping Length	11 mm
Terminal Width	5.2 mm
Termination Style	Push In, Plug Receptacles, Spring
Type	Plug Connection
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²
