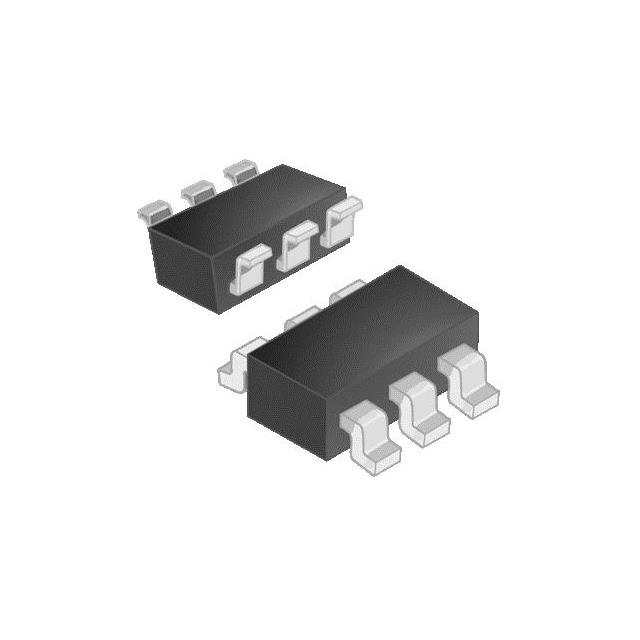

GLF2311A-T2G7

Active

GLF Integrated Power

2.1A CURRENT LIMIT POWER SWITCH

Search across all available documentation for this part.

Active

GLF Integrated Power

2.1A CURRENT LIMIT POWER SWITCH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GLF2311A-T2G7	GLF2311 Series

Current - Output (Max) [Max]	2.1 A	2.1 A
Fault Protection	UVLO, Over Temperature, Current Limiting (Fixed), Short Circuit, Reverse Current	UVLO, Over Temperature, Current Limiting (Fixed), Short Circuit, Reverse Current, Current Limiting (Adjustable)
Features	Slew Rate Controlled, Load Discharge	Slew Rate Controlled, Load Discharge
Interface	On/Off	On/Off
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Package / Case	SOT-23-6	SOT-23-6, SC-74A, SOT-753
Ratio - Input:Output [custom]	1:1	1:1
Rds On (Typ)	56 mOhm	50 - 56 mOhm
Supplier Device Package	SOT-23-6	SOT-23-6, SOT-23-5
Switch Type	General Purpose	General Purpose, USB Switch
Voltage - Load [Max]	5.5 V	5.5 V
Voltage - Load [Min]	2.5 V	2.5 V
Voltage - Supply (Vcc/Vdd)	False	False

2.1A CURRENT LIMIT POWER SWITCH

Part	Mounting Type	Number of Outputs	Supplier Device Package	Features	Voltage - Load [Min]	Voltage - Load [Max]	Switch Type	Interface	Ratio - Input:Output [custom]	Rds On (Typ)	Package / Case	Fault Protection	Current - Output (Max) [Max]
GLF Integrated Power GLF2311A-T2G7	Surface Mount	1	SOT-23-6	Load Discharge, Slew Rate Controlled	2.5 V	5.5 V	General Purpose	On/Off	1:1	56 mOhm	SOT-23-6	Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO	2.1 A
GLF Integrated Power GLF2311B-T1G7	Surface Mount	1	SOT-23-5	Load Discharge, Slew Rate Controlled	2.5 V	5.5 V	General Purpose	On/Off	1:1	56 mOhm	SC-74A, SOT-753	Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO	2.1 A
GLF Integrated Power GLF2311A-T1G7	Surface Mount	1	SOT-23-5	Load Discharge, Slew Rate Controlled	2.5 V	5.5 V	USB Switch		1:1	50 mOhm	SC-74A, SOT-753	Current Limiting (Adjustable), Over Temperature, Reverse Current, Short Circuit, UVLO	2.1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 2.1A SOT-23-6

Technical documentation and resources

No documents available
