Description
General part information
EMDR501W393M1GF001E

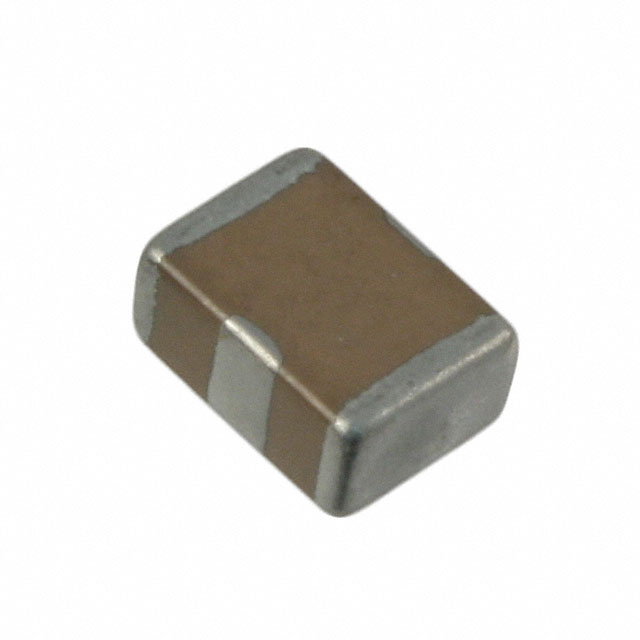

0.039 µF ±20% 500V Ceramic Capacitor X7R 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | EMDR501W393M1GF001E |
|---|---|
| Applications | Decoupling, Boardflex Sensitive, Bypass |
| Capacitance | 0.039 µF |
| Features | Soft Termination, Low ESL (X2Y) |
| Height (Max) | 0.09 " |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Package Name | 1812 |
| Pad Count | 3 PC Pad |
| Size / Dimension Length | 0.174 in |
| Size / Dimension Width | 0.125 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.09 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
