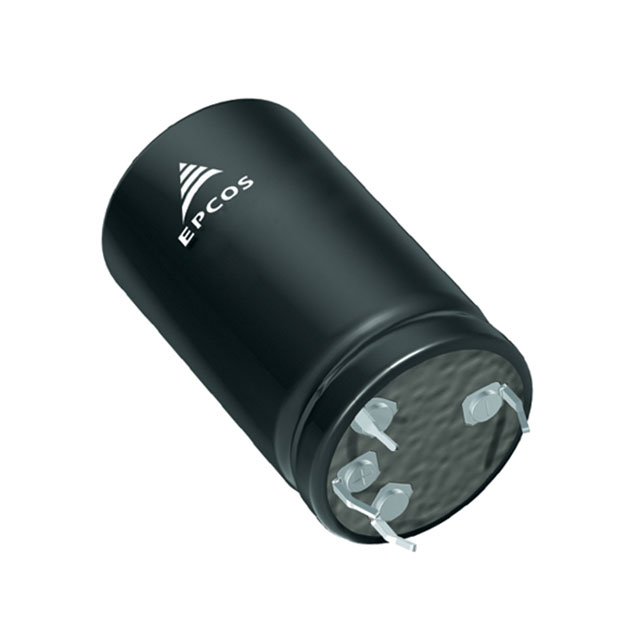

B43630A9187M002
ActiveEPCOS - TDK Electronics
CAP ALUM 180UF 20% 400V SNAP TH
B43630A9187M002
ActiveEPCOS - TDK Electronics
CAP ALUM 180UF 20% 400V SNAP TH
Description
General part information
B43630A9187M002
180 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 3 Lead 570mOhm @ 100Hz 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | B43630A9187M002 |
|---|---|
| Applications | General Purpose |
| Capacitance | 180 µF |
| ESR (Equivalent Series Resistance) | 570 mOhm |
| Height - Seated (Max) | 1.26 in |
| Impedance | 850 mOhm |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package Leads | 3 Leads |
| Package Name | Radial, Can - Snap-In |
| Polarization | Polar |
| Ripple Current | 1.24 A |
| Size / Dimension Diameter | 0.866 in |
| Tolerance | 20 % |
| Voltage - Rated | 400 V |
