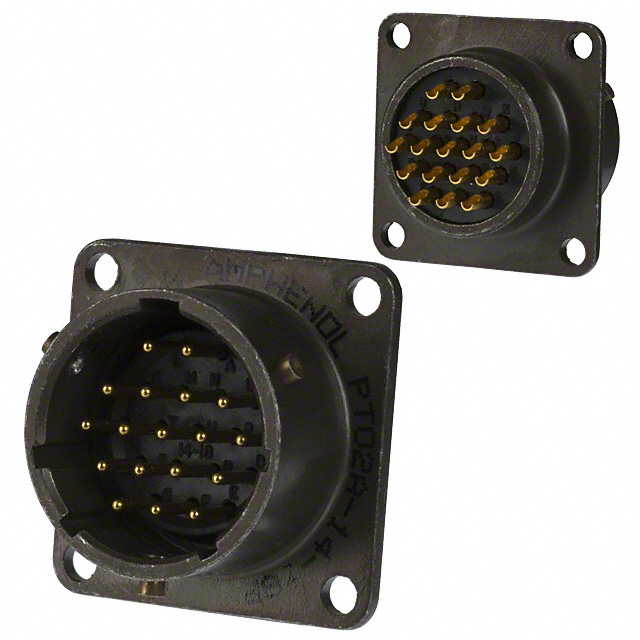

Specification	PT02A-14-18P(025)

Applications	Industrial, Instrumentation, Military, Mass Transit, Aerospace
Backshell Material	Aluminum
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Insert Material	Neoprene
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	18
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Plating	Black Zinc Cobalt
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Black Zinc Cobalt
Shell Material	Aluminum
Shell Size - Insert (Maximum)	18
Shell Size - Insert (Minimum)	14 S
Shielding	Unshielded
Termination	Solder Cup

PT02A Series

Part	Shell Finish	Shielding	Fastening Type	Qualification	Termination	Color	Mounting Feature	Shell Material	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert Width	Shell Size - Insert Length	Connector Type	Orientation	Primary Material	Number of Positions	Contact Finish - Mating	Insert Material	Contact Material	Applications	Backshell Material	Plating	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Backshell Material, Plating	Voltage Rating
Amphenol Aerospace Operations PT02A-12-10SW	Cadmium Olive Drab Chromate	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Olive Drab	Flange	Aluminum	Panel Mount	125 °C	-55 °C	10 mm	12 mm	Female Sockets Receptacle	W	Metal	10	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Aerospace Operations PT02A-20-16P(025)	Black Zinc Cobalt	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Black	Flange	Aluminum	Panel Mount	125 °C	-55 °C	16 mm	20 mm	Male Pins Receptacle	N (Normal)	Metal	16	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT02A-14-5P(025)	Black Zinc Cobalt	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Black	Flange	Aluminum	Panel Mount	125 °C	-55 °C	5 mm	14 mm	Male Pins Receptacle	N (Normal)	Metal	5	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT02A-14-15S	Cadmium Olive Drab Chromate	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Olive Drab	Flange	Aluminum	Panel Mount	125 °C	-55 °C			Female Sockets Receptacle	N (Normal)	Metal	15	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military			14 S	15	Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT02A-12-4P	Cadmium Olive Drab Chromate	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Olive Drab	Flange	Aluminum	Panel Mount	125 °C	-55 °C	4 mm	12 mm	Male Pins Receptacle	N (Normal)	Metal	4	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military					Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT02A-18-32S	Cadmium Olive Drab Chromate	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Olive Drab	Flange	Aluminum	Panel Mount	125 °C	-55 °C			Female Sockets Receptacle	N (Normal)	Metal	32	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military			18	32	Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT02A-16-26P(025)	Black Zinc Cobalt	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Black	Flange	Aluminum	Panel Mount	125 °C	-55 °C			Male Pins Receptacle	N (Normal)	Metal	26	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum	Black Zinc Cobalt	16 S	26
Amphenol Aerospace Operations PT02A14-5PX	Cadmium Olive Drab Chromate	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Olive Drab	Flange	Aluminum	Panel Mount	125 °C	-55 °C	5 mm	14 mm	Male Pins Receptacle	X	Metal	5	Gold	Neoprene	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit					Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT02A-14-15P	Cadmium Olive Drab Chromate	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Olive Drab	Flange	Aluminum	Panel Mount	125 °C	-55 °C			Male Pins Receptacle	N (Normal)	Metal	15	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military			14 S	15	Aluminum Olive Drab Cadmium
Amphenol Aerospace Operations PT02A12-4P-025	Black Zinc Cobalt	Unshielded	Bayonet Lock	MIL-DTL-26482 Series I	Solder Cup	Black	Flange	Aluminum	Panel Mount	125 °C	-55 °C	4 mm	12 mm	Male Pins Receptacle	N (Normal)	Metal	4	Gold	Neoprene	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum	Black Zinc Cobalt				600 V
