B82473A1224K000
ActiveEPCOS - TDK Electronics
FIXED IND 220UH 490MA 960MOHM SM
B82473A1224K000
ActiveEPCOS - TDK Electronics
FIXED IND 220UH 490MA 960MOHM SM
Description
General part information
B82473A1224K000

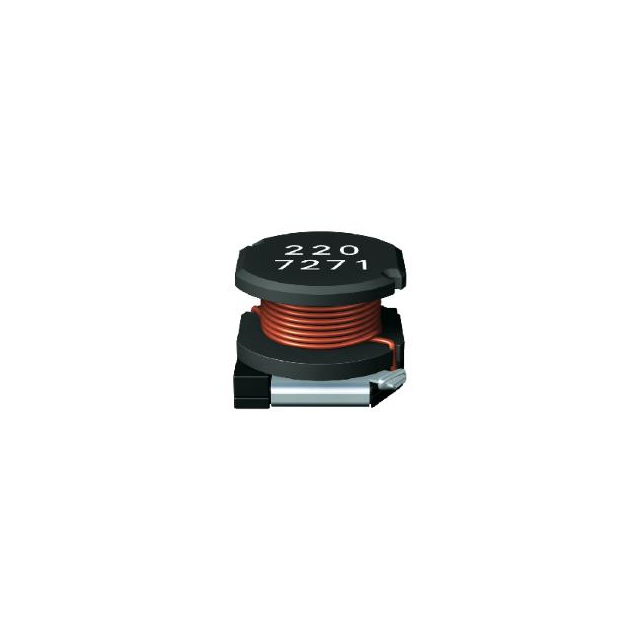

220 µH Unshielded Drum Core, Wirewound Inductor 490 mA 960mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | B82473A1224K000 |
|---|---|
| Current - Saturation (Isat) | 0.55 mA |
| Current Rating | 490 mA |
| DC Resistance (DCR) (Max) | 960 mOhm |
| Height - Seated (Max) | 0.217 in |
| Inductance | 220 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.327 in |
| Size / Dimension Width | 0.287 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
