Description
General part information

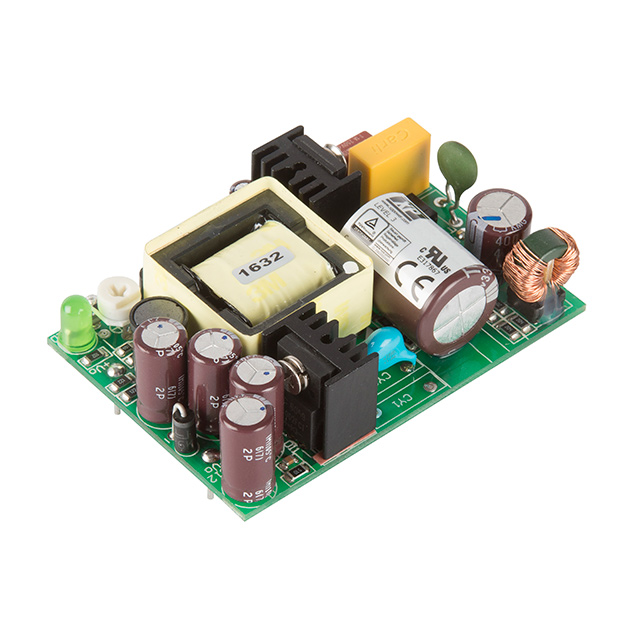

CU15-14
Open Frame AC DC Converters 1 Output 24V 630mA 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | CU15-14 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Current - Output (Max) | 630 mA |
| Efficiency | 82 % |
| Line Regulation | 0.5 % |
| Load Regulation (Percent) | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | 0 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.91 in |
| Size / Dimension Length | 2.75 in |
| Size / Dimension Width | 1.89 in |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output 1 | 24 V |
