100000137
ActiveMcGill Microwave Systems
CXL 900-6LW/H
100000137
ActiveMcGill Microwave Systems
CXL 900-6LW/H
Description
General part information
100000137

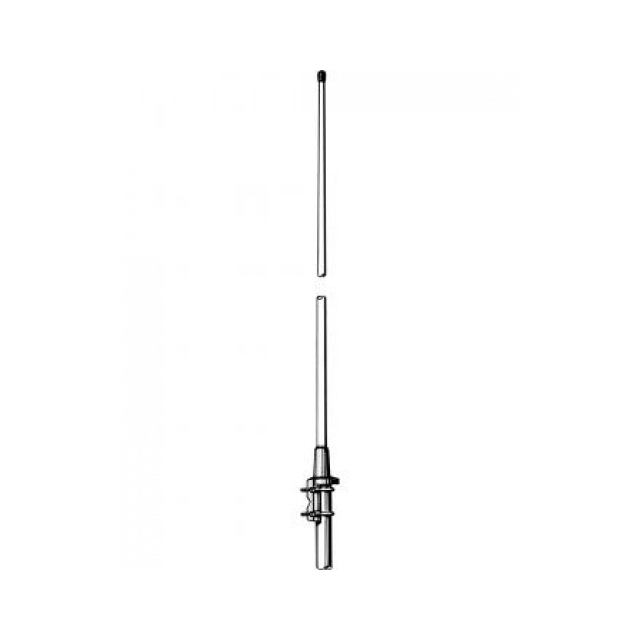

RF ANTENNA Whip, Straight N Type Female Bracket Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 100000137 |
|---|---|
| Antenna Type | Straight, Whip |
| Frequency (Center/Band) | 925 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 890 MHz |
| Gain | 8.2 dBi |
| Height (Max) | 82.677 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max | 150 W |
| Termination | N Type Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
