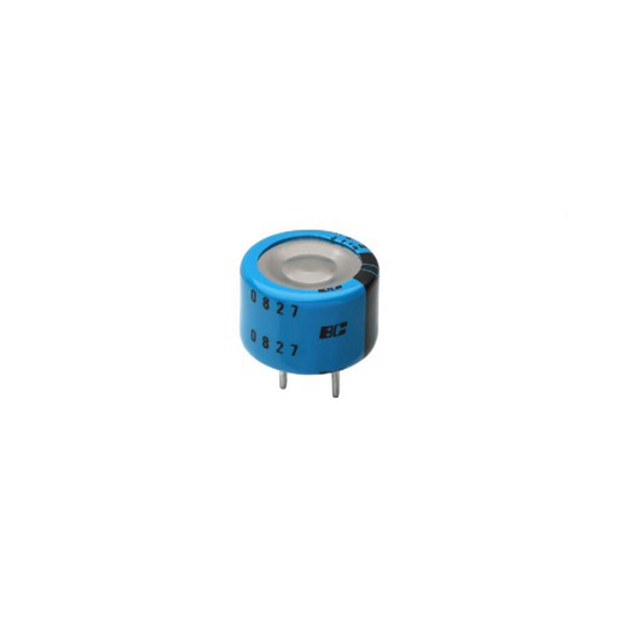

MAL219642474E3
ObsoleteVishay Dale
CAP 470MF -20% +80% 5.5V T/H
MAL219642474E3
ObsoleteVishay Dale
CAP 470MF -20% +80% 5.5V T/H
Description
General part information
MAL219642474E3
470 mF (EDLC) Supercapacitor 5.5 V Radial, Can 50Ohm @ 1kHz 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL219642474E3 |
|---|---|
| Capacitance | 470 mF |
| ESR (Equivalent Series Resistance) | 50 Ohm |
| Height - Seated (Max) | 0.295 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.512 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 5.5 V |
