Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2900359 | 290035 Series |
|---|---|---|
| Approval Agency | DNV, UKCA, CE | UKCA, CE, DNV, cULus, UL, EAC |
| Load Current | 100 mA | 100 mA |
| Mounting Type | DIN Rail | DIN Rail |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Output Type | DC | DC |
| Package / Case | Module | Module |
| Termination Style | Spring Terminal | Spring Terminal |
| Voltage - Input | 120 VAC | 24 - 230 VDC |
| Voltage - Load [Max] | 48 V | 48 V |
| Voltage - Load [Min] | 3 V | 3 V |
290035 Series
SSR RELAY SPST-NO 100MA 3-48V
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Load Current | Mounting Type | Output Type | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Approval Agency | Voltage - Input | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2900354 | 48 V | 3 V | 100 mA | DIN Rail | DC | -25 °C | 60 °C | Module | CE, UKCA | 60 VDC | Spring Terminal |
Phoenix Contact 2900359 | 48 V | 3 V | 100 mA | DIN Rail | DC | -25 °C | 60 °C | Module | CE, DNV, UKCA | 120 VAC | Spring Terminal |
Phoenix Contact 2900358 | 48 V | 3 V | 100 mA | DIN Rail | DC | -25 °C | 60 °C | Module | CE, DNV, UKCA | 24 V | Spring Terminal |
Phoenix Contact 2900352 | 48 V | 3 V | 100 mA | DIN Rail | DC | -25 °C | 60 °C | Module | CE, UKCA | 24 V | Spring Terminal |
Phoenix Contact 2900355 | 48 V | 3 V | 100 mA | DIN Rail | DC | -25 °C | 60 °C | Module | cULus, DNV, EAC, UL | 120 VAC | Spring Terminal |
Phoenix Contact 2900356 | 48 V | 3 V | 100 mA | DIN Rail | DC | -25 °C | 60 °C | Module | CE, DNV, UKCA | 230 VAC | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.36 | |
Description
General part information
290035 Series

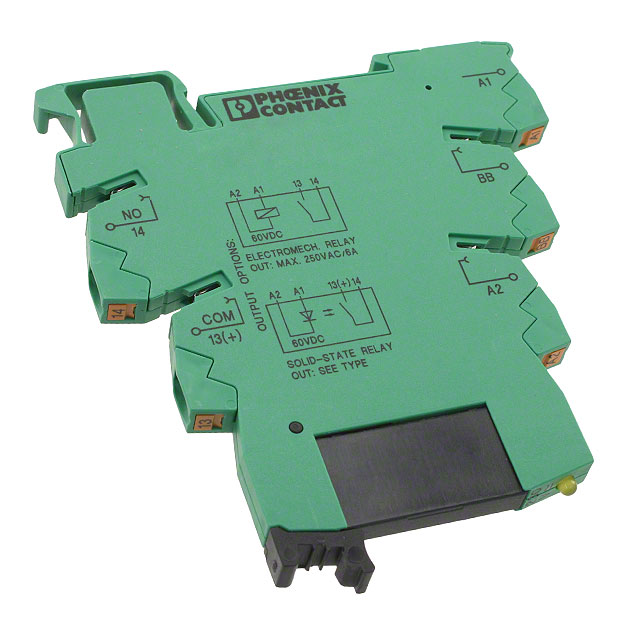

Solid State SPST-NO (1 Form A) Module
