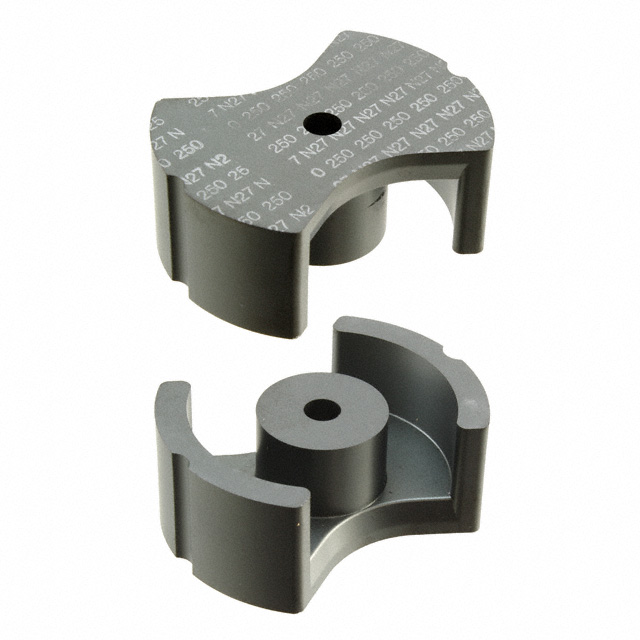

Specification	B65646A0250A027

Core Factor (ΣI/A) mm⁻¹	0.227 mm⁻¹
Core Type	PM
Diameter	1.969 in
Effective Area (Ae)	370 mm²
Effective Length (le)	84 mm
Effective Magnetic Volume (Ve)	31000 mm³
Effective Permeability (µe)	45
Finish	Uncoated
Gap	Gapped
Height	0.768 in
Inductance Factor (Al)	250 nH
Initial Permeability (µi)	2000
Material	N27
Minimum Core Cross Section (Amin) (mm²)	280 mm²
Package Length	50 mm
Package Name	PM
Package Width	39 mm
Tolerance	3 %
