DGBH15MF
ActiveD SUB CONNECTOR ADAPTER, HIGH DENSITY D SUB, PLUG, 15 POSITIONS, HIGH DENSITY D SUB, RECEPTACLE

DGBH15MF
ActiveD SUB CONNECTOR ADAPTER, HIGH DENSITY D SUB, PLUG, 15 POSITIONS, HIGH DENSITY D SUB, RECEPTACLE
Description
General part information
DGBH15MF

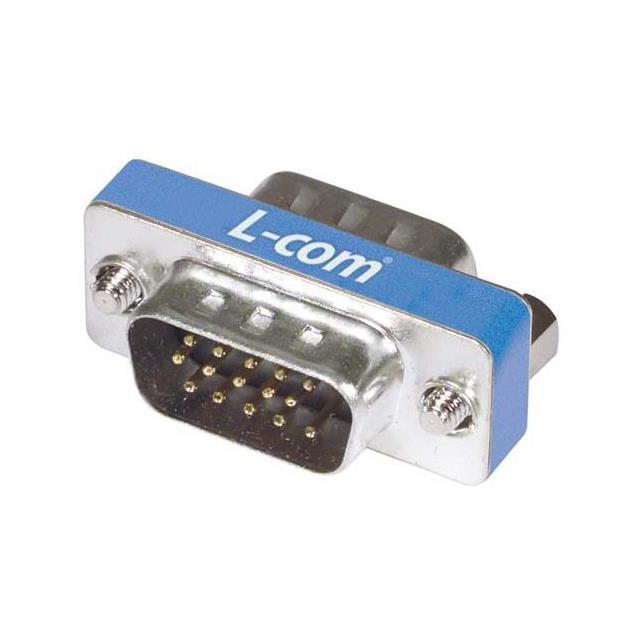

The DGBH15MF is a HD15 male to female dual-purpose slim line high density Socket Saver Adapter extend the life by taking the abuse of frequently mated D-sub connectors used on expensive cables and ports. They are also panel mountable to pass cables through a bulkhead. The low profile design reduces leverage strain on overstressed computer ports and is fully shielded for electrically noisy environments. Universally designed for serial or parallel applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | DGBH15MF |
|---|---|
| Connector Style | Connector Saver |
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Convert From (Adapter End) | Male, D-Sub, 15 HD |
| Convert To (Adapter End) Gender | Female |
| Convert To (Adapter End) Type | D-Sub |
| Current Rating | 3 A |
| Features | Grounding Indents |
| Finish | Tin-Nickel Plated |
| Housing Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Shell Material | Steel |
| Shielding | Shielded |
