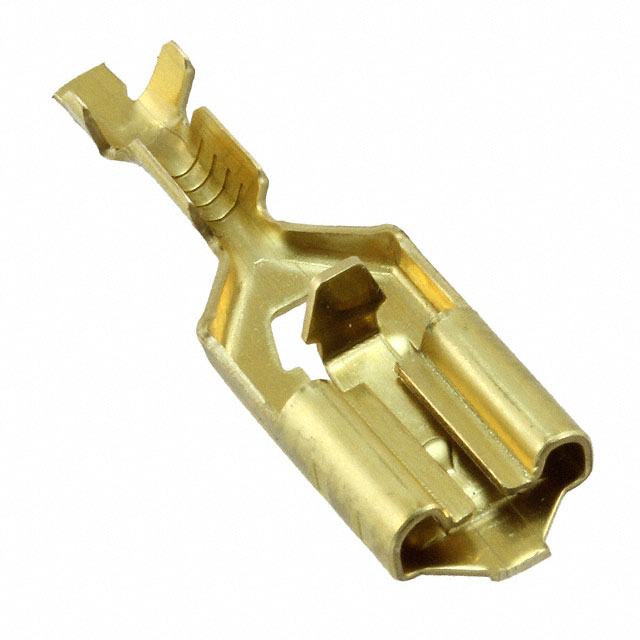

Specification	63119-2

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter (Max)	0.1 in
Insulation Diameter (Min)	0.06 in
Length - Overall	0.886 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.255 in
Tab Thickness	0.032 in
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

Mark II Series

...

Part	Gender	Style	Terminal Type	Terminal Size	Mounting Type	Color	Stacking Direction	Related Product Length	For Use With/Related Products	Number of Positions	Insulation Diameter (Max)	Insulation Diameter (Min)	Tab Thickness	Contact Material	Termination	Tab Width	Contact Finish	Insulation	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Tab Length	Length - Overall	Related Product Thickness	Terminal Angle	Related Product Type	Related Product Maximum Gauge	Related Product Minimum Gauge	Tool Type	Note	Material	Operating Temperature (Max)	Operating Temperature (Min)	Insulation Material	Contact Termination	Pitch	Number of Rows	Fastening Type	Contact Type	Connector Type
TE Connectivity AMP Connectors 520935-2	Female Receptacle	Housing	Disconnect Quick Connect	0.25 in	Free Hanging (In-Line)	Red	Side to Side	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	2
TE Connectivity AMP Connectors 175021-1	Female		Standard		Free Hanging (In-Line)						0.122 in	0.059 in	0.032 in	Brass	Crimp	0.25 in	Tin	Non-Insulated	18 AWG	22 AWG	0.307 in	0.835 in
TE Connectivity AMP Connectors 173974-1	Female Receptacle	Housing	Disconnect Quick Connect	0.187 in	Free Hanging (In-Line)	Natural		0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	1													0.187 in
TE Connectivity AMP Connectors 172763-2	Female		Angled Flag		Free Hanging (In-Line) Right Angle						0.205 in	0.11 in	0.032 in	Copper Alloy	Crimp	0.25 in	Tin	Non-Insulated	14 AWG	18 AWG	0.307 in			90 °
TE Connectivity AMP Connectors 2297529-1	Female		Standard		Free Hanging (In-Line)								0.032 in	Steel	Crimp	0.187 in		Non-Insulated	19.5 AWG	22 AWG		0.85 in
TE Connectivity AMP Connectors 753787-1									14-22 AWG Rectangular Contacts																Rectangular Contacts	22 AWG	14 AWG	Extraction Tool
TE Connectivity AMP Connectors 2238104-1	Female		Standard		Free Hanging (In-Line)								0.032 in	Steel	Crimp	0.25 in	Nickel	Non-Insulated	14 AWG	16 AWG	0.255 in	0.89 in
TE Connectivity AMP Connectors 1-520935-1	Female Receptacle	Housing	Disconnect Quick Connect	0.25 in	Free Hanging (In-Line)	Natural	Side to Side	0.25 in	0.250" (6.35mm) Quick Connects Quick Connects	2
TE Connectivity AMP Connectors 1-174712-1	Female Receptacle	Housing	Disconnect Quick Connect	0.187 in	Free Hanging (In-Line)	Natural	Top to Bottom	0.187 in	0.187" (4.75mm) Quick Connects Quick Connects	2													0.187 in						Contacts Not Included	Nylon
TE Connectivity AMP Connectors 3-1969453-1					Free Hanging (In-Line)	Natural				2																					130 °C	-40 °C	Nylon 6/6 Polyamide (PA66)	Crimp	0.512 in	1	Push-Pull	Female Socket	Receptacle
