224920-E
ActiveTE Connectivity AMP Connectors
MICROS STV 9 407 188 * 0007 J 3 224920 M
224920-E
ActiveTE Connectivity AMP Connectors
MICROS STV 9 407 188 * 0007 J 3 224920 M
Description
General part information
- Series

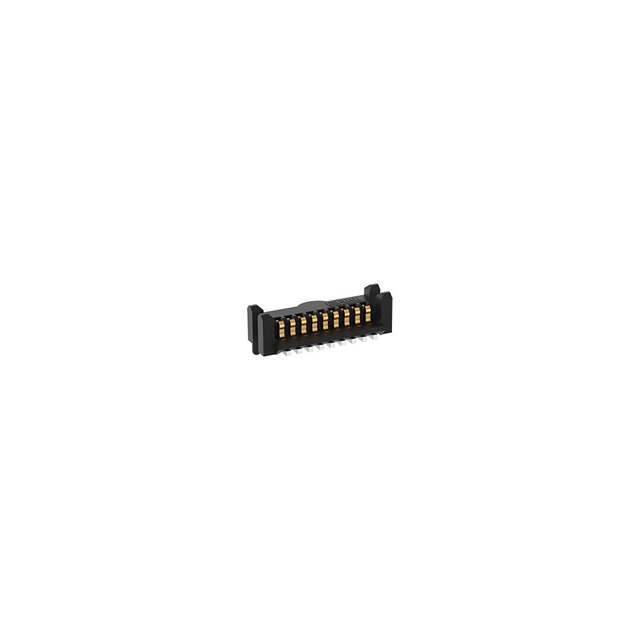

PCB Mount Hermaphroditic Connector, Vertical, Board-to-Board, 9 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), ERNI MicroStac
Technical Specifications
Parameters and characteristics for this part
| Specification | 224920-E |
|---|---|
| Connector Type | Plug, Non-Gendered |
| Contact Finish | Gold |
| Features | Board Guide |
| Height Above Board | 0.111 in |
| Mated Stacking Height | 3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Pitch | 0.031 in |
