TE Connectivity AMP Connectors

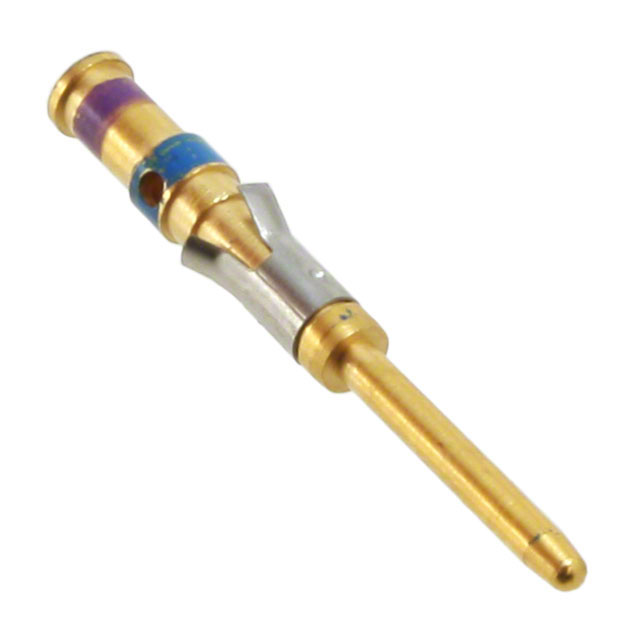

CIRCULAR CONNECTOR CONTACT, MULTIMATE, TYPE II SERIES, PIN, CRIMP, 14 AWG, 14 AWG

201570-1

201570-1

Active

TE Connectivity AMP Connectors

CIRCULAR CONNECTOR CONTACT, MULTIMATE, TYPE II SERIES, PIN, CRIMP, 14 AWG, 14 AWG

Description Specifications Series Pricing CAD Documents

Description

General part information

AMP M Series Series

Pin Contact, Gold (Au), Spring Contact Retention, Size 16 Contact Size, Discrete Wire, 14 AWG, 2 mm² Wire, Crimp, Brass, Power, AMP M Series

Technical Specifications

Parameters and characteristics for this part

Specification	201570-1

Contact Finish	PdNi +Gold, Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Contact Termination	Crimp
Pin or Socket	Pin
Type	Machined
Wire Gauge	14 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3D Product Image EN

3D Product Image EN

Manufacturer Catalogue EN

Product Change Notice EN

Selection of Multimate Pin and Socket Contacts

Application and Maintenance for Hand Crimping Tool

Crimping Dies 90080-2 and 90103

Type II Screw Machine Pin and Socket Contacts

Type Ii Screw Machine Contacts

Signal Contacts

Application and Maintenance for Crimping Die Assemblies

AMP Circular Connectors for Commercial Signal & Power Applications

M_SERIES_PIN_AND_SOCKET_CONNECTORS

AMP M Series Series

...
