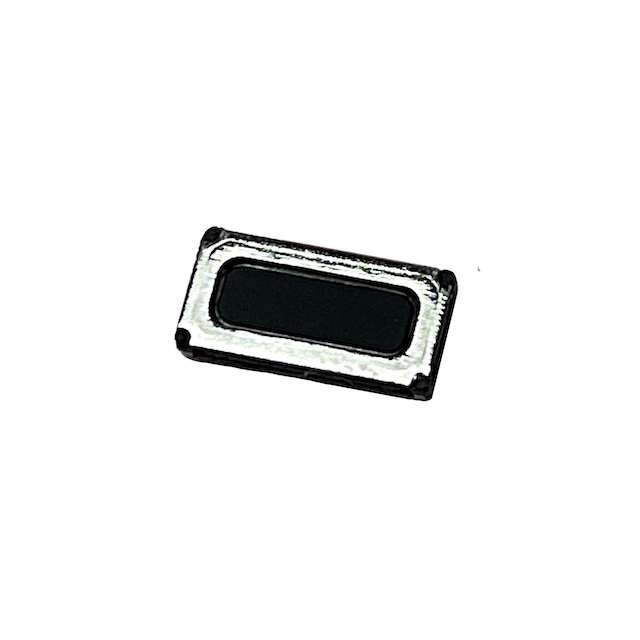

SW121108-1
ActiveDB Unlimited
SPEAKER 8OHM 250MW TOP PORT 81DB
SW121108-1
ActiveDB Unlimited
SPEAKER 8OHM 250MW TOP PORT 81DB
Description
General part information
SW121108-1
8 Ohms General Purpose Speaker 250 mW 1.1 kHz ~ 10 kHz Top Rectangular
Technical Specifications
Parameters and characteristics for this part
| Specification | SW121108-1 |
|---|---|
| Efficiency - dBA | 81 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 250 mW |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 1100 Hz |
| Frequency Range (Max) | 10 kHz |
| Frequency Range (Min) | 1.1 kHz |
| Height - Seated (Max) | 0.083 in |
| Impedance | 8 Ohm |
| Ingress Protection | Waterproof |
| Material - Cone | Polyetheretherketone (PEEK) |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Power - Max | 0.5 W |
| Power - Rated | 0.25 W |
| Shape | Rectangular |
| Size / Dimension Length | 0.472 in |
| Size / Dimension Width | 0.236 in |
| Technology | Magnetic |
| Termination | Spring Type |
| Type | General Purpose |
