FMCA1929-100CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-NEX10PLUG 39.37
FMCA1929-100CM
ActiveFairview Microwave
CBL ASSY SMAPLUG-NEX10PLUG 39.37
Description
General part information
FMCA1929-100CM

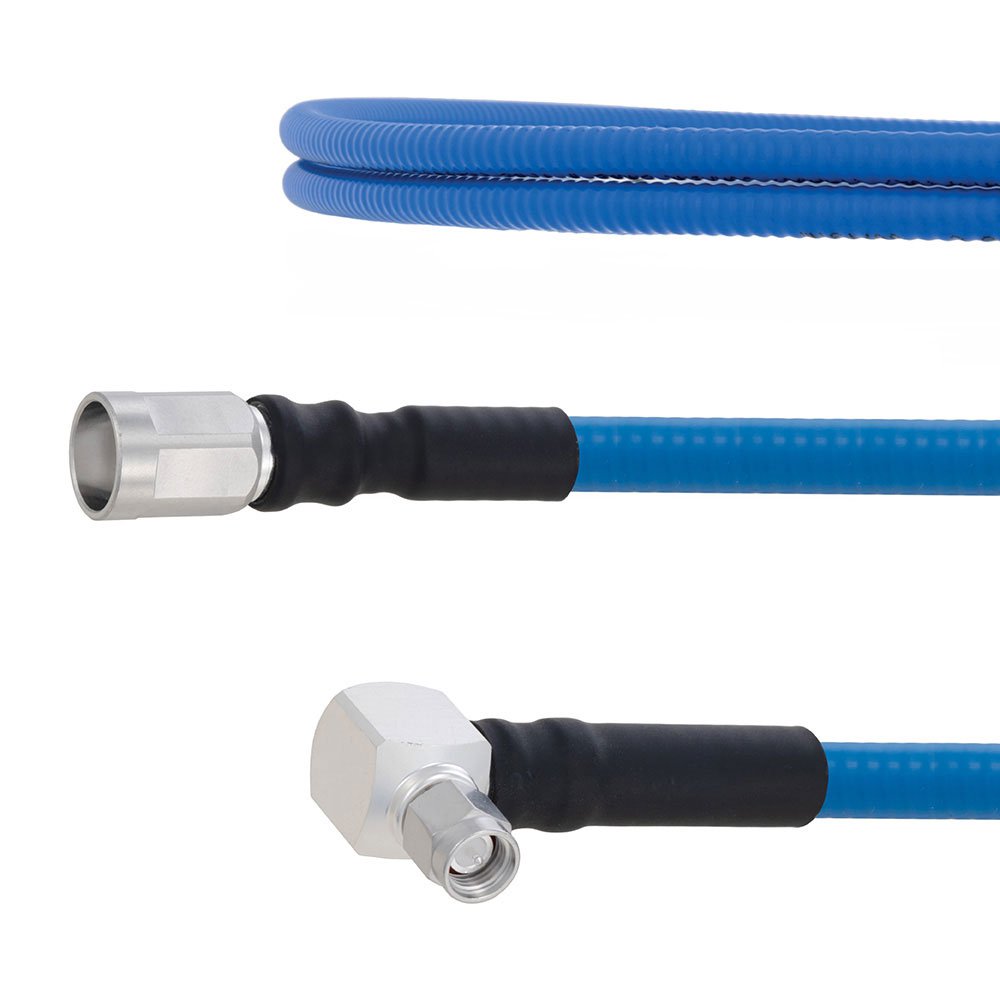

Cable Assembly Coaxial SMA to NEX SPP-250LLPL 39.4" (1.0m) 3.3'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1929-100CM |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | NEX10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 39.4 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, NEX |
