100009890
ActiveTelegartner Inc
HF-CABLE RG-58C/U, 2.0M
100009890
ActiveTelegartner Inc
HF-CABLE RG-58C/U, 2.0M
Description
General part information
100009890

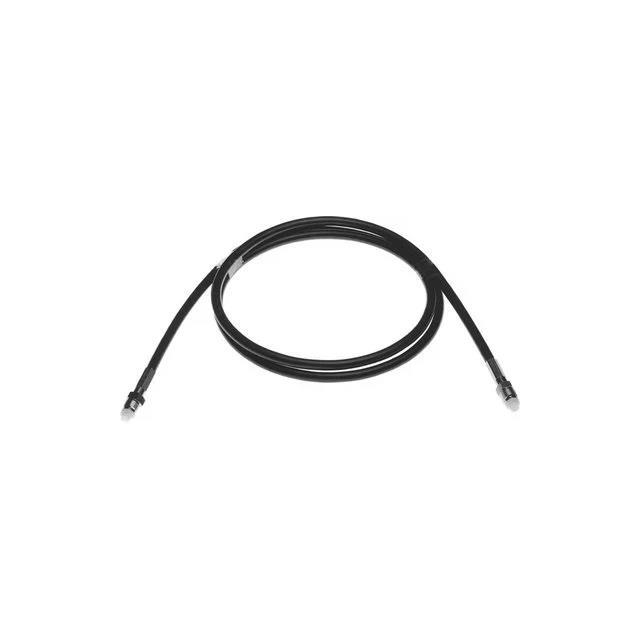

Cable Assembly Coaxial FME to FME RG-58C 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | 100009890 |
|---|---|
| 1st Connector | FME Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | FME Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58C |
| Color | Black |
| Frequency - Max | 2 GHz |
| Length (ft) | 6.6 ft |
| Overall Impedance | 50 Ohms |
| Style | FME |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
