Description
General part information

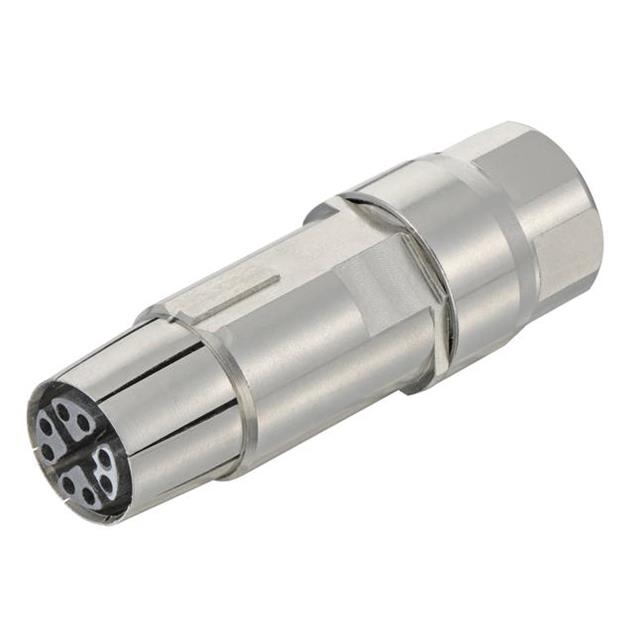

09148812806
Female Insert without Contacts 8 Position Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 09148812806 |
|---|---|
| Connector Type | Insert without Contacts |
| Contact Finish | Nickel |
| Contact Material | Copper Alloy |
| Contact Type | Han-Modular® |
| Current Rating | 0.5 A |
| Gender | Female |
| Housing Material | Liquid Crystal Polymer, LCP |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Termination Style | Crimp |
| Voltage Rating | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
