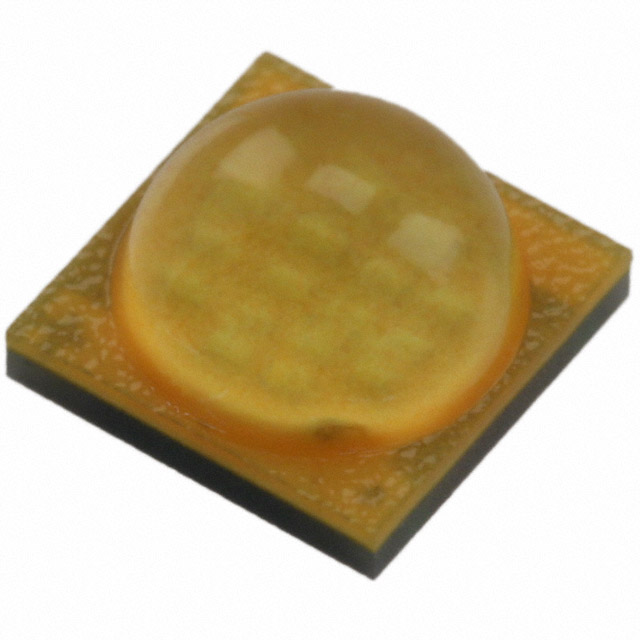

XMLHVW-Q2-0000-0000LS4E7
ActiveCree LED
LED XLAMP WARM WHT 3000K SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XMLHVW-Q2-0000-0000LS4E7
ActiveCree LED
LED XLAMP WARM WHT 3000K SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLHVW-Q2-0000-0000LS4E7 |
|---|---|
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 125 mA |
| Current - Test | 44 mA |
| Flux @ 85°C, Current - Test | 168 lm |
| Height - Seated (Max) [Max] [z] | 0.13 " |
| Height - Seated (Max) [Max] [z] | 3.3 mm |
| Lumens/Watt @ Current - Test | 83 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2020 |
| Package / Case | 5050 Metric |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [custom] | 3.5 °C/W |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 46 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.18 | |
| Digi-Reel® | 1 | $ 4.18 | ||
| Tape & Reel (TR) | 250 | $ 3.23 | ||
| 500 | $ 3.03 | |||
| 1250 | $ 2.80 | |||
Description
General part information
XMLHVW-Q2-0000-0000LS4E7
LED Lighting Xlamp® XM-L HVW White, Warm 3000K 46V 44mA 110° 2020 (5050 Metric)
