Description
General part information
FG1(75)-120X120T2900

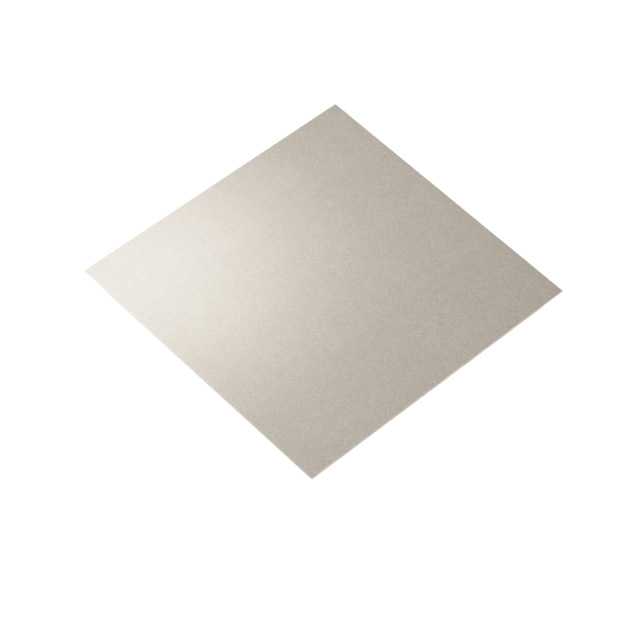

RF EMI Absorbing Sheet FG1 - FLEX SUPPRESSOR® Polymer, Magnetic Powder Non-Conductive, Single Sided 4.724" (120.00mm) X 4.724" (120.00mm) X 0.003" (0.09mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FG1(75)-120X120T2900 |
|---|---|
| Adhesive | Single Sided, Non-Conductive |
| Length | 4.724 in |
| Material | Polymer, Magnetic Powder |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shape | Square |
| Shelf Life | 36 Months |
| Storage/Refrigeration Temperature (Maximum) | 104 °F |
| Thickness - Overall | 0.003 in |
| Type | Absorbing Sheet |
| Width | 4.724 in |
