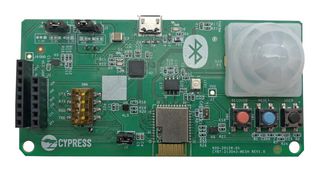

CYBT-213043-MESH kit contents The EZ-BT Mesh Evaluation kit (CYBT-213043-MESH) enables the evaluation of SIG mesh functionality using the EZ-BT Bluetooth® 5.0-qualified module CYBT-213043-02. The CYBT-213043-02, EZ-BT module is an integrated, fully-certified, 12.0 mm x 16.61 mm x 1.70 mm, programmable dual-mode Bluetooth® module with Bluetooth® mesh support designed to reduce time-to-market. The CYBT-213043-02 module utilizes the Infineon CYW20819 silicon device. CYW20819 is an ultra-low-power (ULP) and highly integrated dual-mode Bluetooth® 5.0 qualified device. The CYW20819’s low-power and integration capability addresses the requirements of both battery- and wall-powered applications that require BLE mesh, such as sensor nodes, locks, lighting, blind controllers, asset tracking, and many more Smart Home applications. CYBT-213043-MESH kit is supported in ModusToolbox 2.2 with Bluetooth SDK 2.8 or later. The Bluetooth® SDK includes a number of demo code examples that allow you to implement real-life mesh application such as a dimmable light (bulb), dimmer and a thermometer and likes just in few minutes. Infineon also provided a number of other code examples and snip codes for mesh functionality that are available onGitHub. These code examples can be searched and imported within ModusToolbox™ IDE. Each mesh board included in the CYBT-213043-MESH kit features following: Figure 1 shows the top view of the mesh evaluation board and Figure 2 shows the bottom view of the mesh evaluation board.
