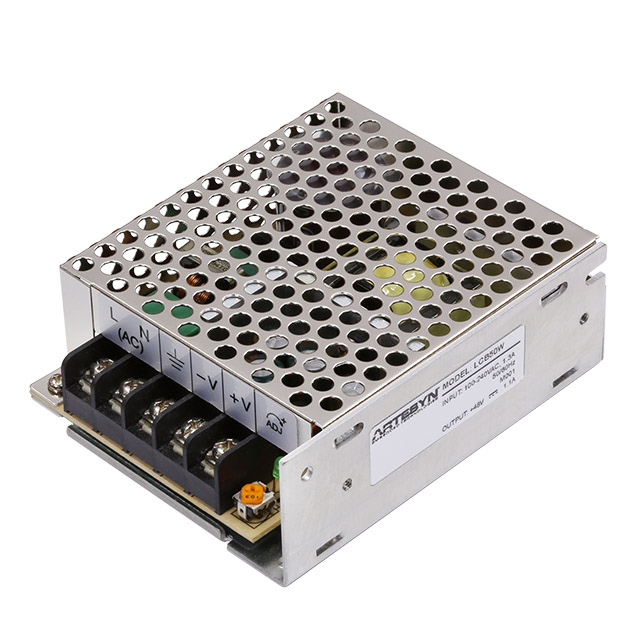

LCB50W
ObsoleteARTESYN / Advanced Energy
AC/DC CONVERTER 48V 50W
LCB50W
ObsoleteARTESYN / Advanced Energy
AC/DC CONVERTER 48V 50W
Description
General part information
LCB50W
Enclosed AC DC Converters 1 Output 48V 88 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LCB50W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 1.1 A |
| Efficiency | 90 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 50 W |
| Size / Dimension Height | 1.4 in |
| Size / Dimension Length | 3.92 in |
| Size / Dimension Width | 3.21 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 88 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 48 V |
