CO-058SMABNC0-007.5
ActiveMcGill Microwave Systems
CBL ASSY BNC-SMA PLUG-PLUG 7.5'
CO-058SMABNC0-007.5
ActiveMcGill Microwave Systems
CBL ASSY BNC-SMA PLUG-PLUG 7.5'
Description
General part information
CO-058SMABNC0-007.5

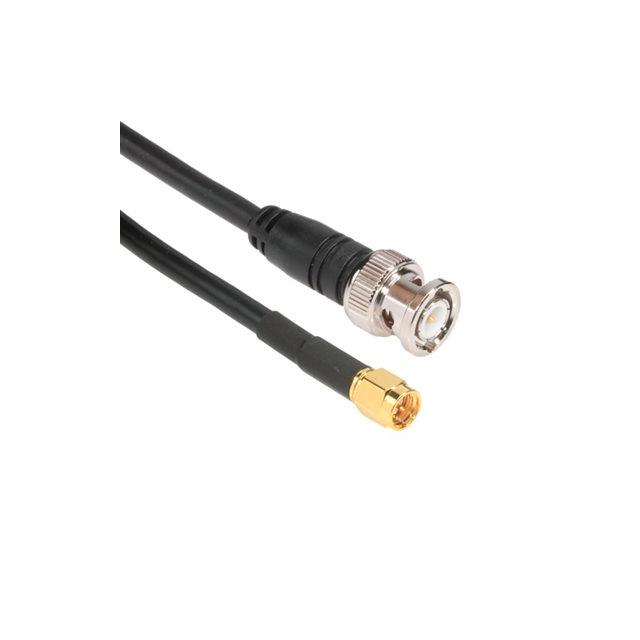

Cable Assembly Coaxial BNC to SMA RG-58 90.0" (2.3m) 7.5'
Technical Specifications
Parameters and characteristics for this part
| Specification | CO-058SMABNC0-007.5 |
|---|---|
| 1st Connector | BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 58 |
| Color | Black |
| Length | 90 in |
| Length (ft) | 7.5 ft |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
