SSI-LXR9126SGD110V

Active

Lumex Opto/Components Inc.

LED GRN PNL MNT 6"LDS W/CONN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED GRN PNL MNT 6"LDS W/CONN

Technical Specifications

Parameters and characteristics commom to parts in this series

LED GRN PNL MNT 6"LDS W/CONN

Part	Lens Transparency	Ratings	Lamp Color	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Millicandela Rating	Lens Style	Lens Size	Lens Size	Lens Color	Voltage	Type	Wavelength - Peak
Lumex Opto/Components Inc. SSI-LXR9126SGD110V	Diffused	AC	Green	Round	8.13 mm	0.32 in	60 °	60 mcd	Round with Domed Top	T-1 3/4	5 mm	Green	120 V	LED
Lumex Opto/Components Inc. SSI-LXR9126SID110V	Diffused	AC	Red	Round	8.13 mm	0.32 in	60 °	100 mcd	Round with Domed Top	T-1 3/4	5 mm	Red	120 V	LED	636 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

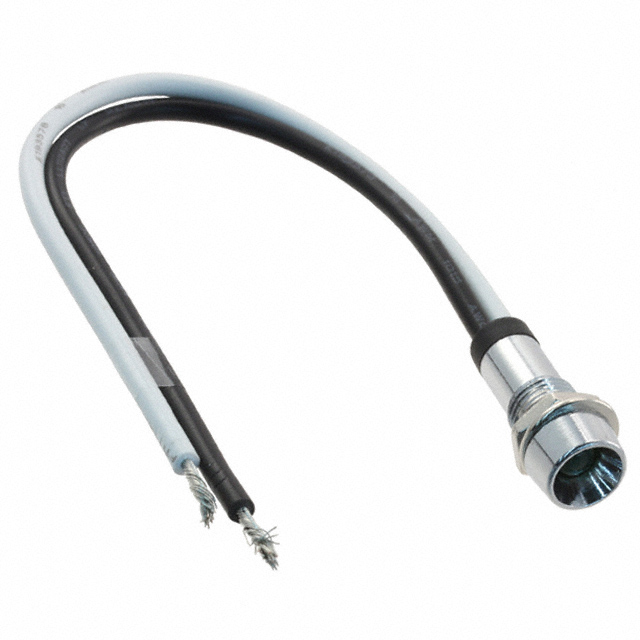

LED Panel Indicator Green Diffused 60° 120V Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
