Description
General part information
KITACTBRDS74PINTOBO1

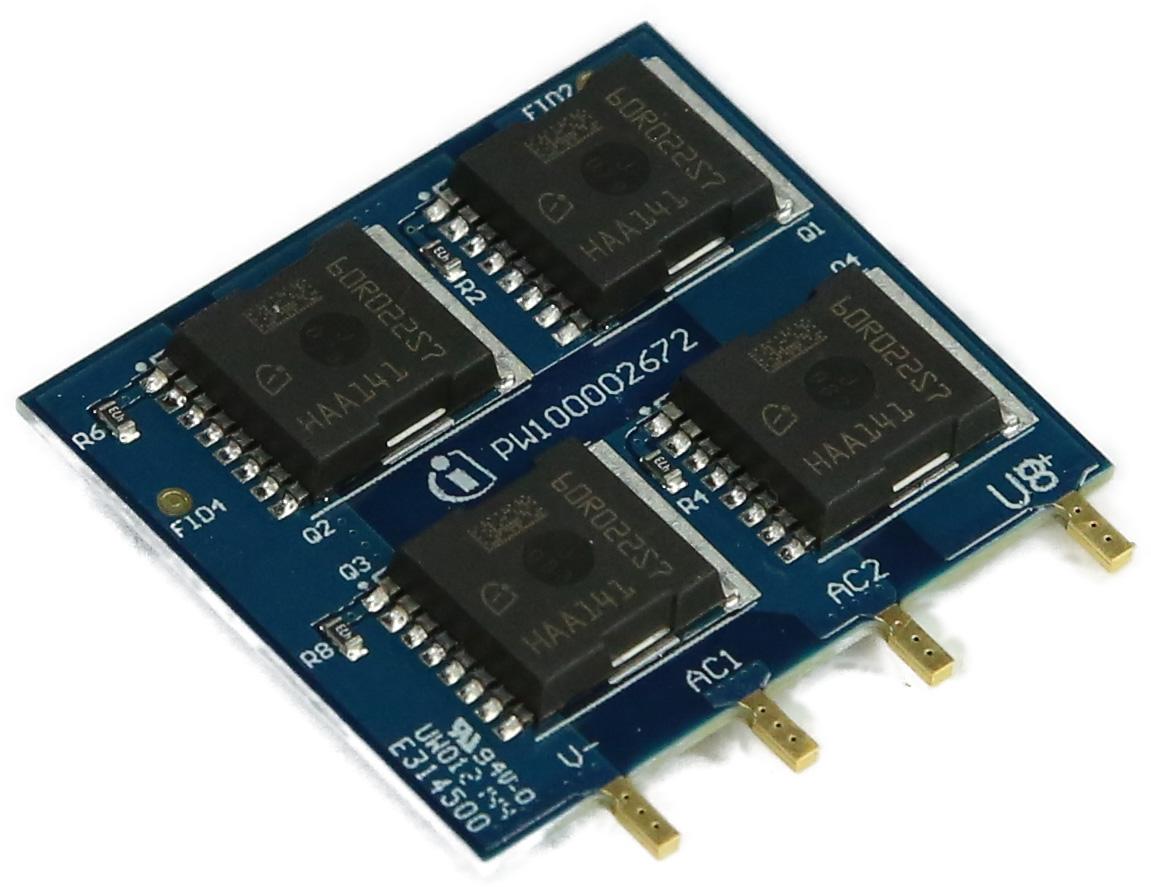

The KIT_ACT_BRD_S7_4PIN aims to replace the standard diode bridge rectifier with an active full-bridge for line rectification in standard CCM boost PFCs. The active-bridge is based on newCoolMOS™ S722mΩ of RDS(on). The board is equipped with control and driving circuitries integrated in one chip. The board has only 4-pins, thus being pin to pin compatible with the standard diode bridge.
Technical Specifications
Parameters and characteristics for this part
| Specification | KITACTBRDS74PINTOBO1 |
|---|---|
| Contents | Board |
| Function | Bridge Rectifier |
| Type | Power Management |
| Utilized IC / Part | IR11688S |
