Description
General part information

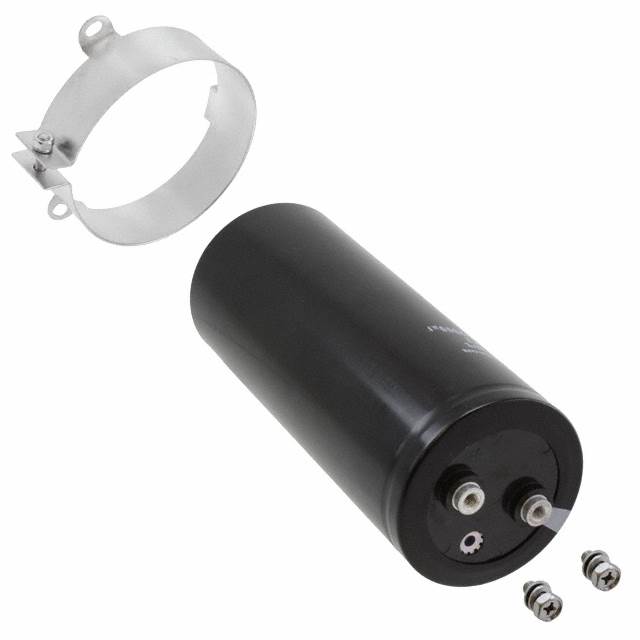

LNT2E333MSE
33000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 2000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNT2E333MSE |
|---|---|
| Applications | General Purpose |
| Capacitance | 33000 µF |
| Height - Seated (Max) | 254 mm |
| Lead Spacing | 1.634 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 20.4 A, 17 A |
| Size / Dimension Diameter | 3.937 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
