FFVE6U0107KJ7
ActiveKYOCERA AVX
CAP FILM 100UF 10% 1.2KVDC RAD
FFVE6U0107KJ7
ActiveKYOCERA AVX
CAP FILM 100UF 10% 1.2KVDC RAD
Description
General part information
FFVE6U0107KJ7

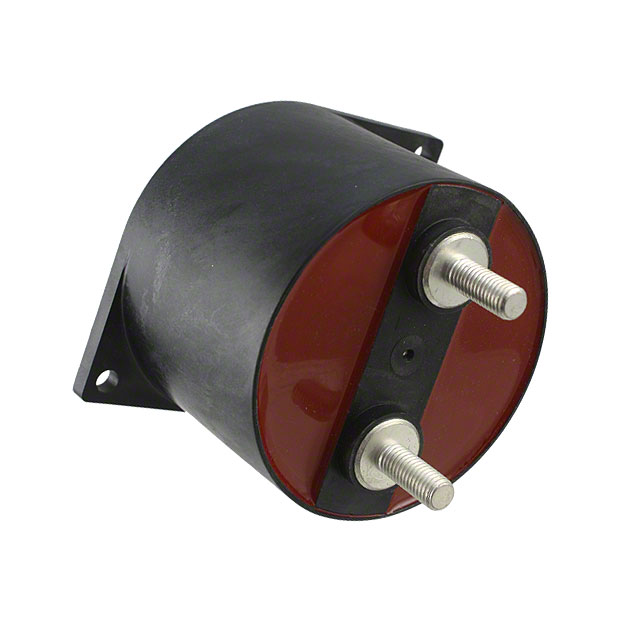

100 µF Film Capacitor 1200V (1.2kV) Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FFVE6U0107KJ7 |
|---|---|
| Applications | DC Filtering, DC Link |
| Capacitance | 100 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 2.559 in |
| Lead Spacing | 1.772 in |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 3.327 in |
| Termination | Threaded, Female |
| Tolerance | 10 % |
| Voltage Rating - DC | 1200 V |
