FMA28-PFPF-S24
ActiveConductRF
CBL ASSY SMP JACK TO JACK 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FMA28-PFPF-S24
ActiveConductRF
CBL ASSY SMP JACK TO JACK 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FMA28-PFPF-S24 | FMA28 Series |
|---|---|---|
| 1st Connector | SMP Jack | MCX Plug, SMA Plug, SMP Jack, Right Angle, SMA Jack |
| 1st Connector Mounting Feature | - | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Panel Mount |
| 1st Contact Gender | Female | Male, Female |
| 2nd Connector | SMP Jack | MCX Plug, Right Angle, SMP Jack, Right Angle, SMP Jack, SMA Plug, SMA Plug, Right Angle, MCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 2nd Contact Gender | Female | Male, Female |
| Cable Type | Hand Formable .085 | Hand Formable .085 |
| Color | Gray | Gray |
| Connector Impedance | 50 Ohms | 50 Ohms |
| Features | Shielded | Shielded |
| Frequency - Max [Max] | 18 GHz | 18 - 6000 MHz |
| Length | 24 " | 5 - 36 " |
| Length | 609.6 mm | 1.5 - 609.6 mm |
| Length | - | 457.2 mm |
| Length | - | 406.4 - 457.2 mm |
| Length | - | 16 in |
| Length | - | 5 ft |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Impedance | 50 Ohms | 50 Ohms |
| Style | SMP to SMP | MCX to MCX, SMA to SMP, SMP to SMP, SMA to SMA, SMA to MCX |
FMA28 Series
CBL ASSY MCX PLUG TO PLUG 18"
| Part | 2nd Connector Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | 2nd Contact Gender | 1st Connector Mounting Type | 1st Contact Gender | Connector Impedance | Style | Features | Overall Impedance | 2nd Connector | Frequency - Max [Max] | Length [x] | Length [x] | 1st Connector | Cable Type | Length [x] | Length | Length | 1st Connector Mounting Feature | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ConductRF FMA28-M1M2-S18 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Male | Free Hanging (In-Line) | Male | 50 Ohms | MCX to MCX | Shielded | 50 Ohms | MCX Plug, Right Angle | 6000 MHz | 457.2 mm | 457.2 mm | MCX Plug | Hand Formable .085 | |||||
ConductRF FMA28-S1PR-S16 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Female | Free Hanging (In-Line) | Male | 50 Ohms | SMA to SMP | Shielded | 50 Ohms | SMP Jack, Right Angle | 18 GHz | 406.4 mm | SMA Plug | Hand Formable .085 | 16 in | |||||
ConductRF FMA28-PFPR-S16 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Female | Free Hanging (In-Line) | Female | 50 Ohms | SMP to SMP | Shielded | 50 Ohms | SMP Jack, Right Angle | 18 GHz | 406.4 mm | SMP Jack | Hand Formable .085 | 16 in | |||||
ConductRF FMA28-M1M2-S12 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Male | Free Hanging (In-Line) | Male | 50 Ohms | MCX to MCX | Shielded | 50 Ohms | MCX Plug, Right Angle | 6000 MHz | MCX Plug | Hand Formable .085 | 12 " | 304.8 mm | |||||
ConductRF FMA28-S1PF-S16 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Female | Free Hanging (In-Line) | Male | 50 Ohms | SMA to SMP | Shielded | 50 Ohms | SMP Jack | 18 GHz | 406.4 mm | SMA Plug | Hand Formable .085 | 16 in | |||||
ConductRF FMA28-S1S1-S08 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Male | Free Hanging (In-Line) | Male | 50 Ohms | SMA to SMA | Shielded | 50 Ohms | SMA Plug | 18 GHz | SMA Plug | Hand Formable .085 | 8 in | 203.2 mm | |||||
ConductRF FMA28-S2M1-S18 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Male | Free Hanging (In-Line) | Male | 50 Ohms | SMA to MCX | Shielded | 50 Ohms | MCX Plug, Right Angle | 6000 MHz | 457.2 mm | 457.2 mm | Right Angle, SMA Plug | Hand Formable .085 | |||||
ConductRF FMA28-S1S2-S08 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Male | Free Hanging (In-Line) | Male | 50 Ohms | SMA to SMA | Shielded | 50 Ohms | SMA Plug, Right Angle | 18 GHz | SMA Plug | Hand Formable .085 | 8 in | 203.2 mm | |||||
ConductRF FMA28-S2S2-S24 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Male | Free Hanging (In-Line) | Male | 50 Ohms | SMA to SMA | Shielded | 50 Ohms | SMA Plug, Right Angle | 18 GHz | Right Angle, SMA Plug | Hand Formable .085 | 24 " | 609.6 mm | |||||
ConductRF FMA28-S1PF-S24 | Free Hanging (In-Line) | -55 °C | 125 °C | Gray | Female | Free Hanging (In-Line) | Male | 50 Ohms | SMA to SMP | Shielded | 50 Ohms | SMP Jack | 18 GHz | SMA Plug | Hand Formable .085 | 24 " | 609.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 72.00 | |
| 5 | $ 63.54 | |||
| 10 | $ 56.85 | |||
| 25 | $ 51.43 | |||
| 50 | $ 49.09 | |||
| 100 | $ 46.96 | |||
| 250 | $ 43.20 | |||
| 500 | $ 40.01 | |||
| 1000 | $ 38.58 | |||
Description
General part information
FMA28 Series

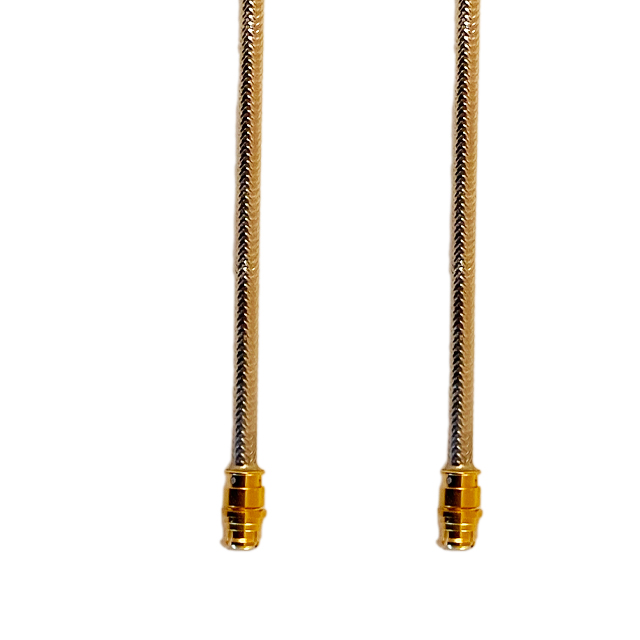

Cable Assembly Coaxial SMP to SMP Hand Formable .085 24.00" (609.60mm)
