Description
General part information

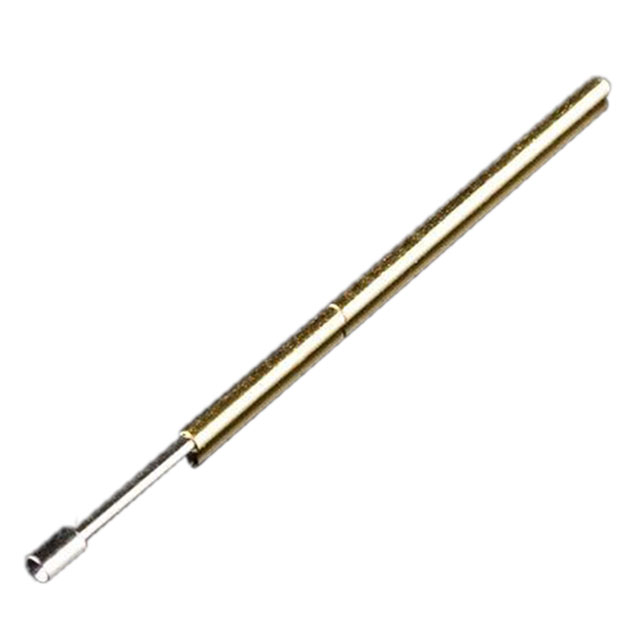

PRT-10114
Contact Spring Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | PRT-10114 |
|---|---|
| Contact Finish | Gold |
| Contact Type | Sleeve, Plunger |
| Current Rating | 3 A |
| Maximum Working Height | 1.299 in |
| Minimum Working Height | 1.043 in |
| Mounting Type | Through Hole |
| Operating Force - Initial | 120 gf |
| Pad Layout Diameter | 0.04 in |
| Pad Layout Shape | Circular |
| Plunger Diameter | 0.059 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
