UPG2031TQ-A
ObsoleteRenesas Electronics Corporation
IC RF SWITCH SP3T 2GHZ 10TSON
UPG2031TQ-A
ObsoleteRenesas Electronics Corporation
IC RF SWITCH SP3T 2GHZ 10TSON
Description
General part information
UPG2031TQ-A
RF Switch IC Cellular, CDMA, GPS, PCS SP3T 2 GHz 50Ohm 10-TSON (2.3x2.55)
Technical Specifications
Parameters and characteristics for this part
| Specification | UPG2031TQ-A |
|---|---|
| Circuit | SP3T |
| Frequency Range (Max) | 2 GHz |
| Frequency Range (Min) | 500 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.55 dB |
| Isolation | 21 dB |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -45 °C |

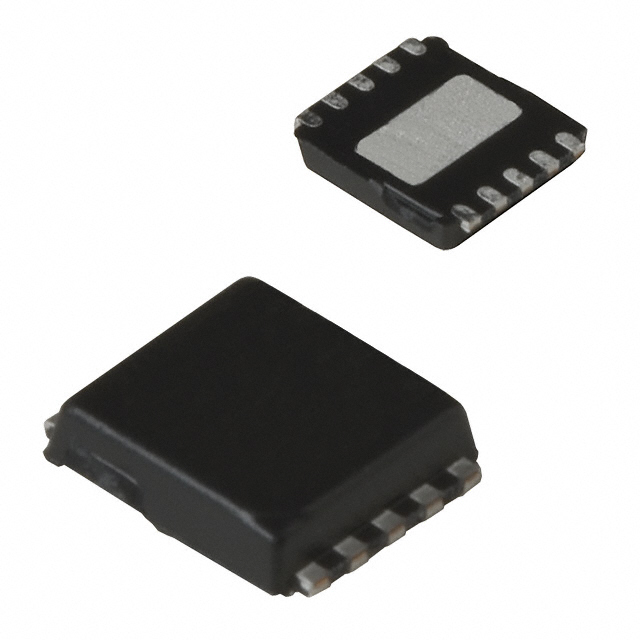

| Package / Case | 10-UFDFN Exposed Pad |
| Package Length | 2.3 mm |
| Package Name | 10-TSON |
| Package Width | 2.55 mm |
| RF Type | CDMA, Cellular, PCS, GPS |
| Test Frequency | 2 GHz |
| Topology | Reflective |
