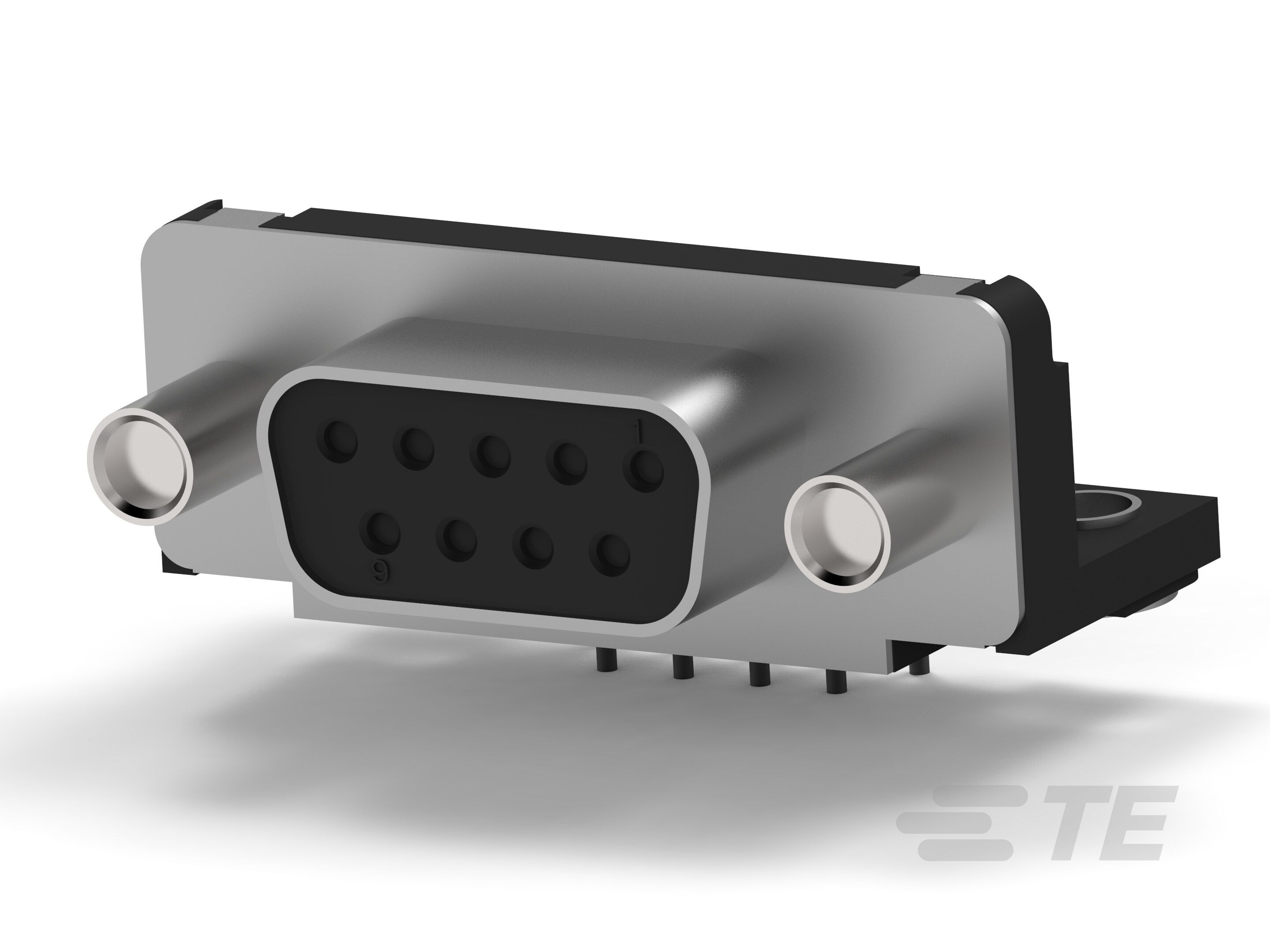

HD-20 RCPT 9P RA FFSCRLK HT-5788803-1

5788803-1

Active
TE Connectivity AMP Connectors

D-SUB STANDARD CONNECTORS DSUB E

Find alt

Description

General part information

5788803-1

9 Position D-Shaped Connector, Receptacle, Board-to-Board, Board Mount, 1 Shell Size, 2.74 mm [.108 in] Centerline, Printed Circuit Board, Signal

Technical Specifications

Parameters and characteristics for this part

Specification5788803-1
Backset Spacing0.318 in
Connector LayoutDE, E
Connector StyleD-Sub
Connector TypeReceptacle, Female Sockets
Contact FinishGold
Contact Finish Thickness30 µin
Contact TypeSignal
Current Rating6 A
FinishTin Plated
Flange FeatureFemale Screwlock (4-40), Mating Side
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions9
Number of Rows2
Shell MaterialSteel
Shell Size1
TerminationSolder
