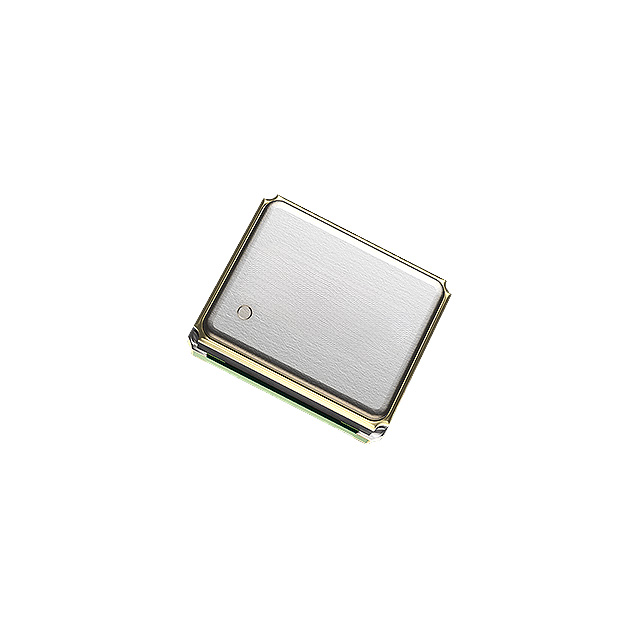

KT2016K19200ZAW18TRK
ActiveKYOCERA AVX
1.6MM X 1.2MM TCXO, 19.2MHZ, 1.8
KT2016K19200ZAW18TRK
ActiveKYOCERA AVX
1.6MM X 1.2MM TCXO, 19.2MHZ, 1.8
Description
General part information
KT2016K19200ZAW18TRK
19.2 MHz TCXO Clipped Sine Wave Oscillator 1.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | KT2016K19200ZAW18TRK |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 2 mA |
| Frequency | 19.2 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.063 in |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
