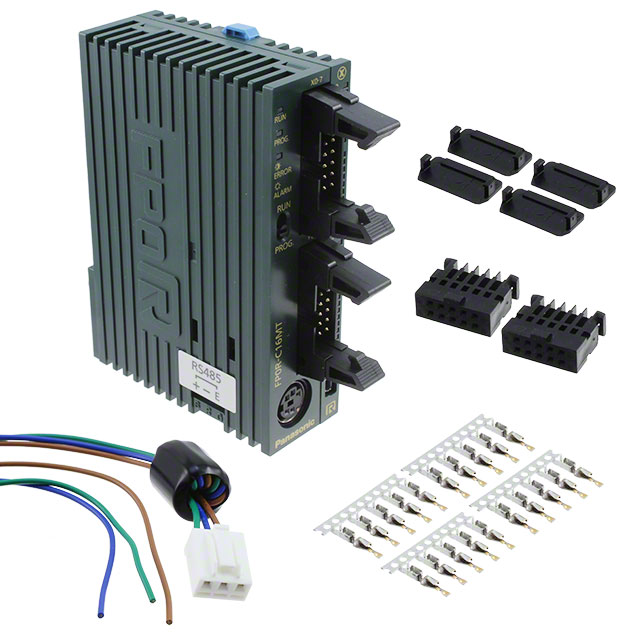

AFP0RC16MT

AFP0RC16MT

Active
Panasonic Industrial Automation Sales

CONTROL LOGIC 8 IN 8 OUT 24V

Find alt
AFP0RC16MT

AFP0RC16MT

Active
Panasonic Industrial Automation Sales

CONTROL LOGIC 8 IN 8 OUT 24V

Find alt

Description

General part information

AFP0RC Series

Programmable Logic Controller (PLC) DIN Rail 24VDC

Technical Specifications

Parameters and characteristics for this part

SpecificationAFP0RC16MT
Approval AgencycULus, CE
CommunicationsRS-485
Display TypeNo Display
Input TypesDigital
Maximum Expandable Modules3 Modules
Memory Size12 K Words
Mounting TypeDIN Rail
Number of Inputs8
Number of Outputs8
Operating Temperature (Max)55 °C
Operating Temperature (Min)0 °C
Output TypePWM, Pulse
PWM Outputs4
SoftwareFPWINPRO7
Voltage - Supply24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Programmable Controllers FPOR
AFP0RC16MT | Datasheet
